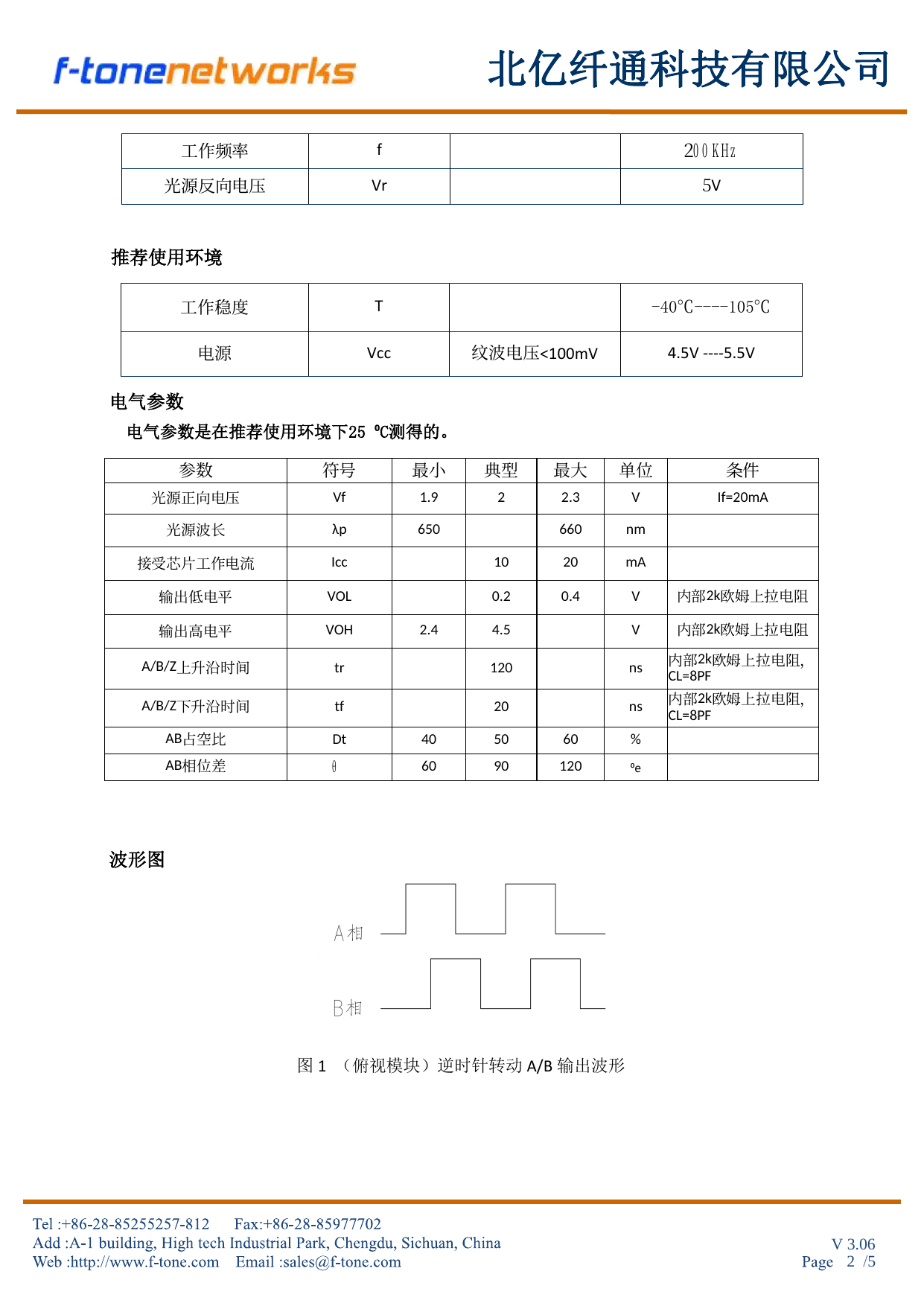

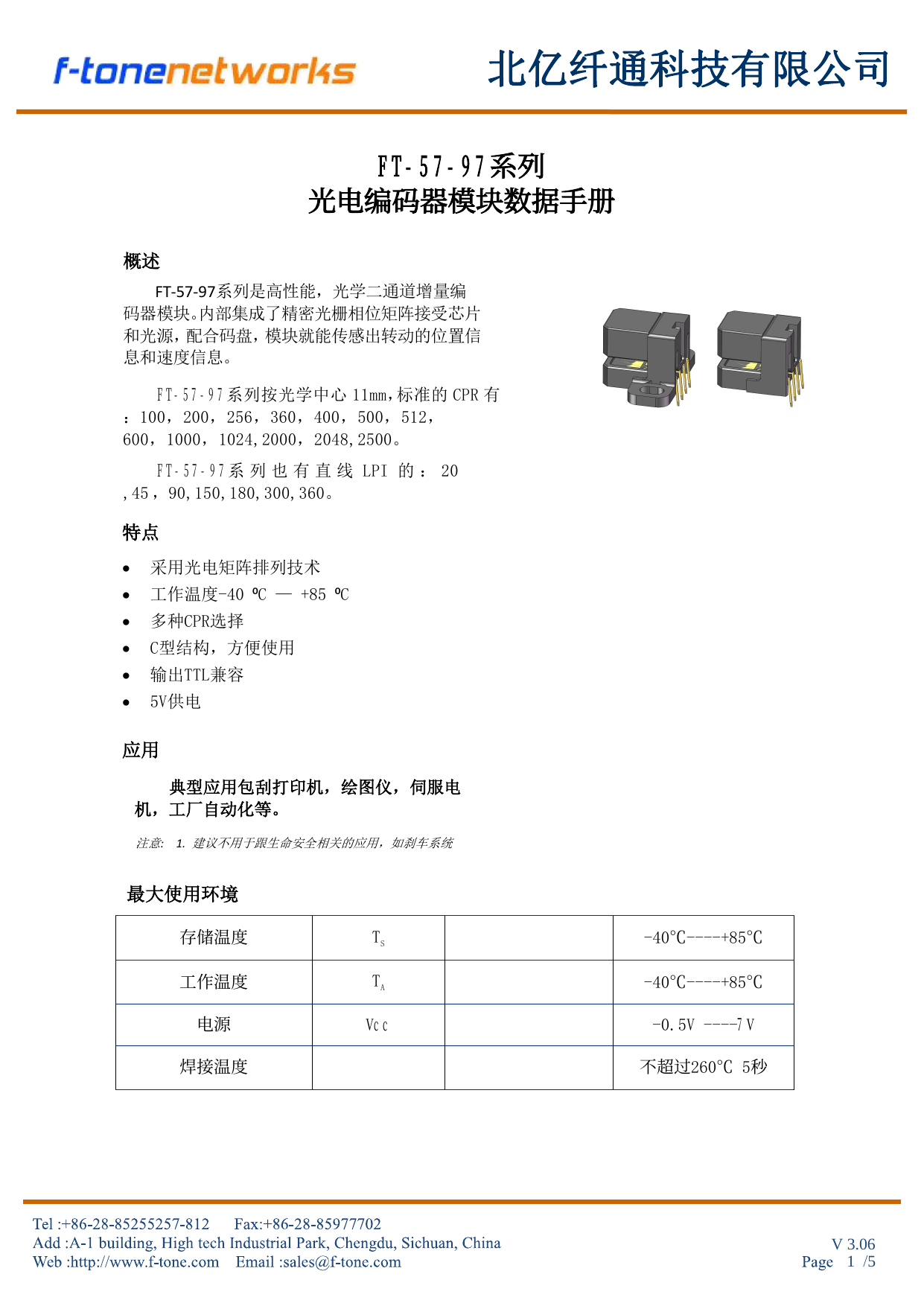

模块不带安装孔机械位置尺寸

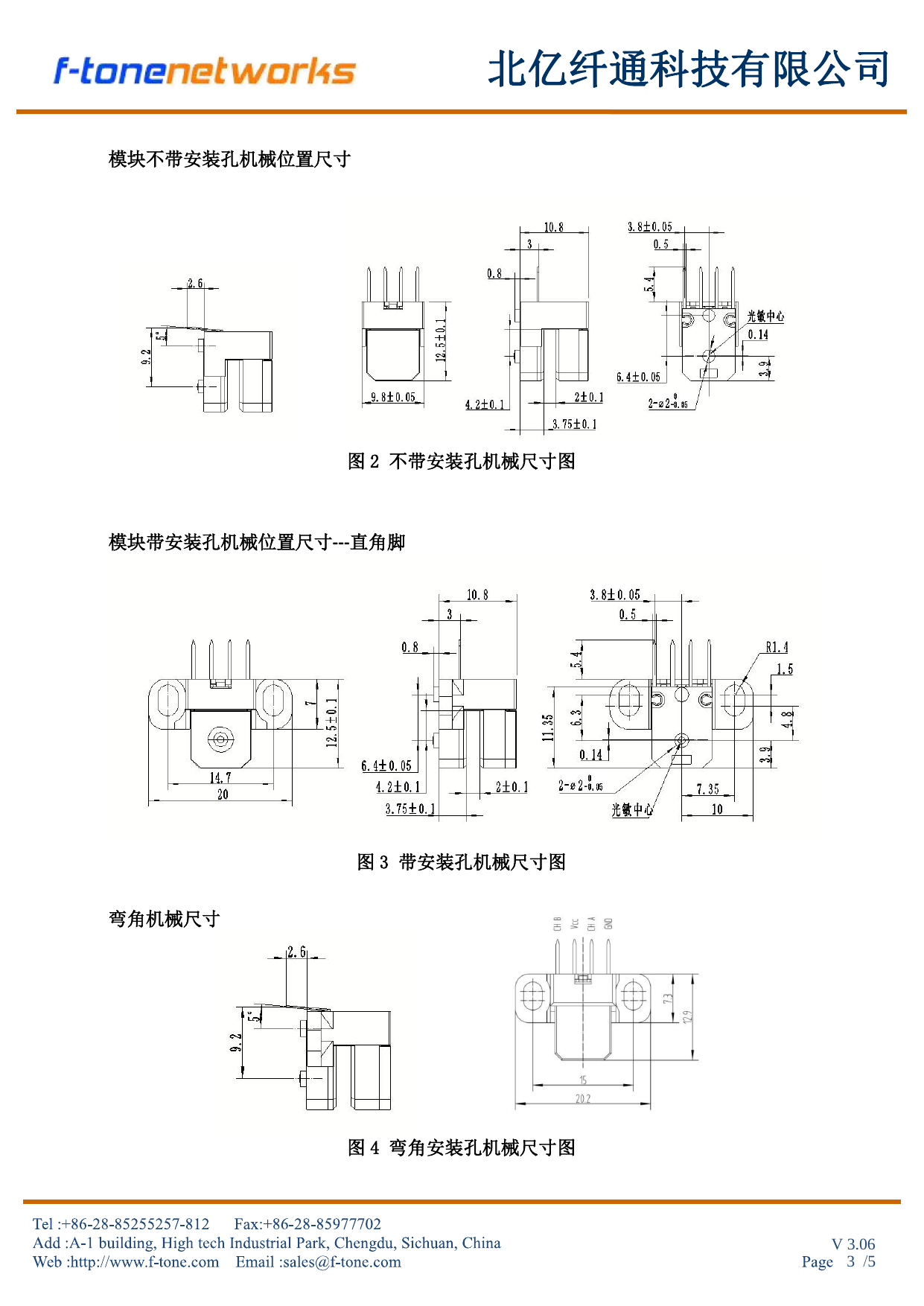

图2 不带安装孔机械尺寸图
模块带安装孔机械位置尺寸—直角脚
图3 带安装孔机械尺寸图
弯角机械尺寸
图4 弯角安装孔机械尺寸图
V 3.06
3 /5

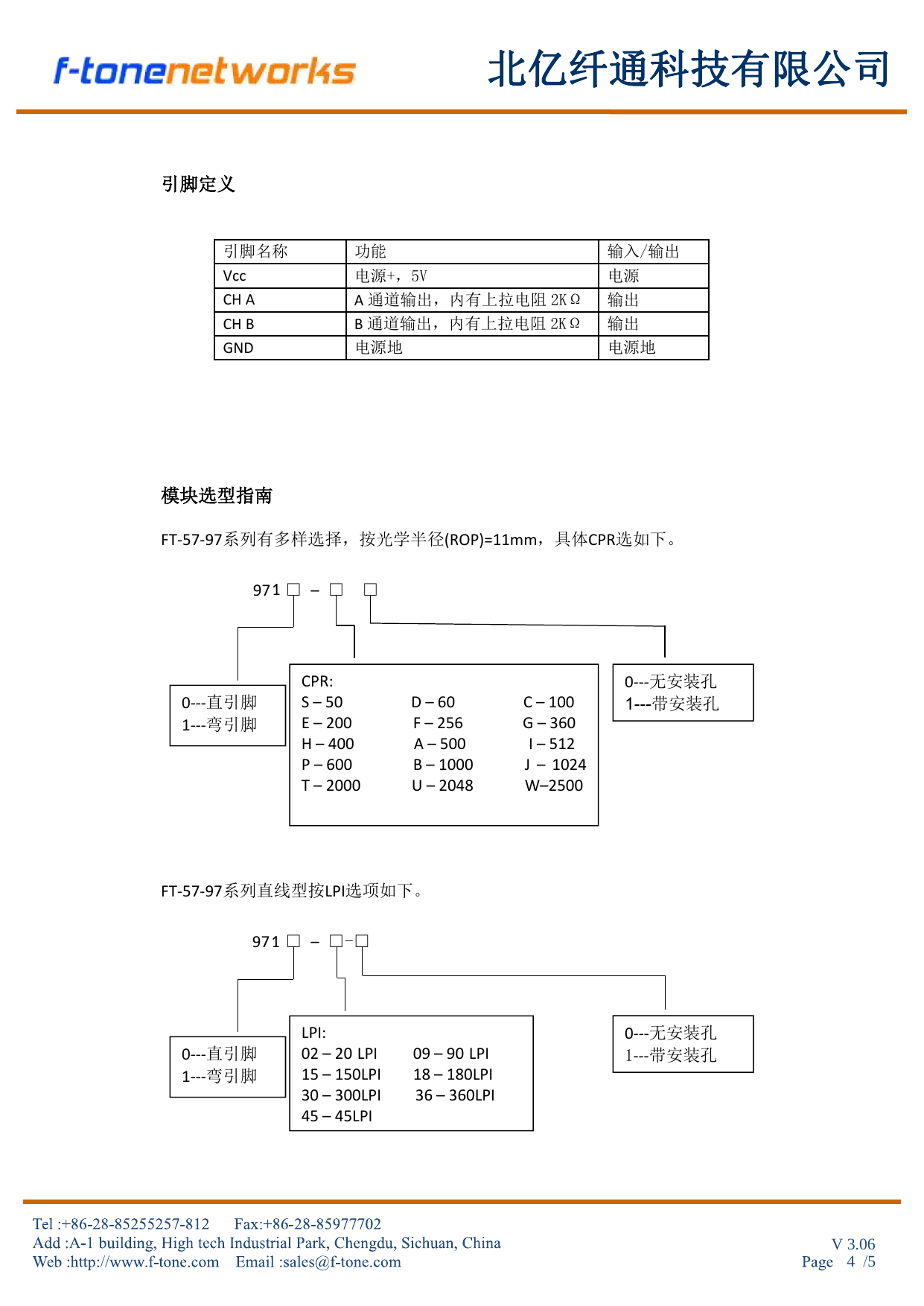

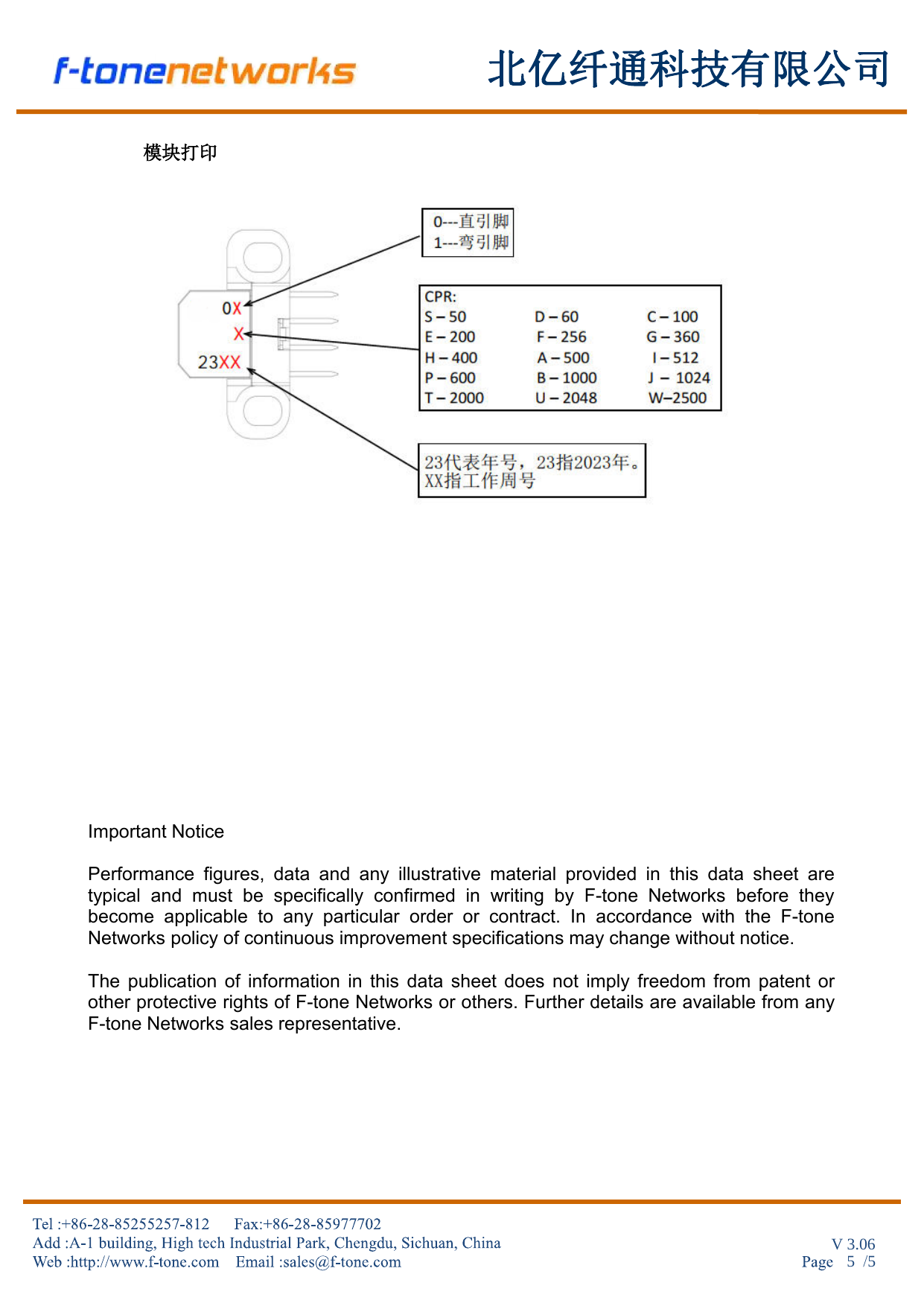

模块打印
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are
typical and must be specifically confirmed in writing by F-tone Networks before they
become applicable to any particular order or contract. In accordance with the F-tone
Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or
other protective rights of F-tone Networks or others. Further details are available from any
F-tone Networks sales representative.
V 3.06
5 /5
Region: Tianfu New Area, Sichuan, China
Service Area: Global
Tel: 028-85255257 | Fax: 028-85977702 | Mobile: 19081343401
Site: https://www.f-tone.com
HR: hr@f-tone.com | Sales: sales@f-tone.com | Support: support@f-tone.com
本产品为【光电编码器】产品线，详细信息，请联系我们的销售人员，谢谢！
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they becomes applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
