JYSK2M12ND系列 12芯

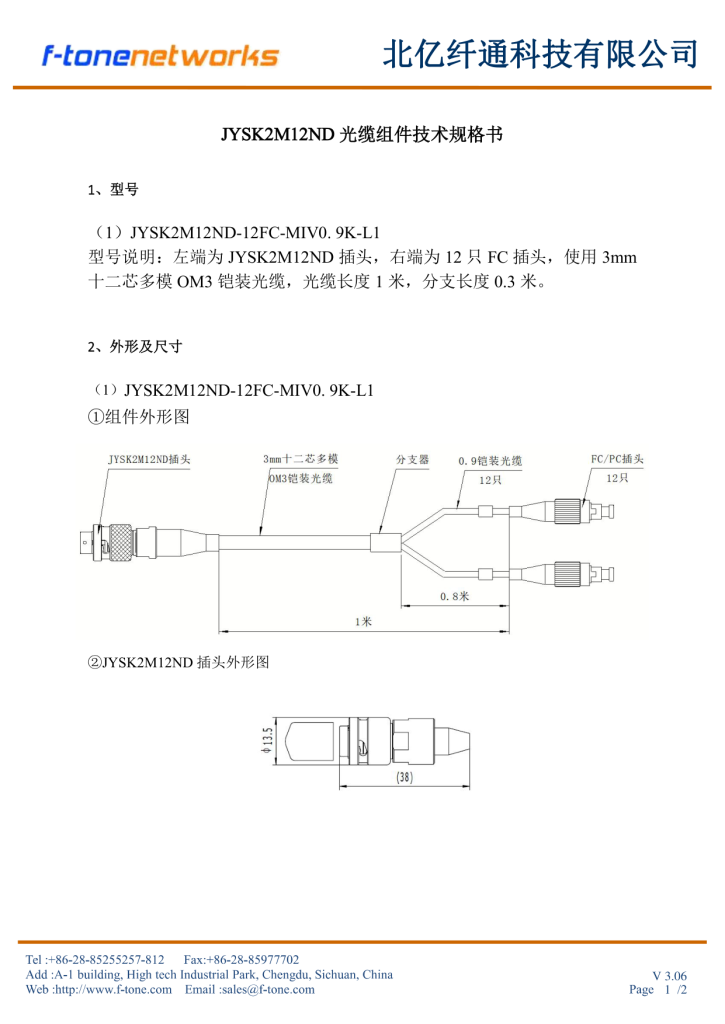

JYSK2M12ND系列 12芯 M12圆形多模OM3铠装光缆组件 V3.06, F-tone Networks 出品. 左端JYSK2M12ND插头, 右端12只FC插头, 3mm十二芯多模OM3铠装光缆, 光缆长度1米, 分支长度0.3米. 模式: 多模OM3. 工作波长: 850nm & 1300nm. 插入损耗: JYS ≤0.5dB, FC ≤0.2dB. 插拔次数: 500次. 工作温度: -45°C ~ +85°C. 存储温度: -55°C ~ +85°C. 振动: 10-55Hz, 振幅0.75mm 恒定位移. 冲击: 30g 半正弦波 40ms. 盐雾: 500h.

JYSK2M12ND系列 12芯 M12圆形多模OM3铠装光缆组件 V3.06 (左端M12 JYSK2M12ND插头右端12只FC插头 3mm 12芯多模OM3铠装光缆 1米总长 0.3米分支 850nm&1300nm 插损JYS≤0.5dB/FC≤0.2dB 500次插拔 -45~+85°C 500h盐雾) | F-tone Networks 北亿纤通
