RP7(A)F11T10-RP7(A)F11T10-C3×12-MIV0.5 光缆组件技术规格书

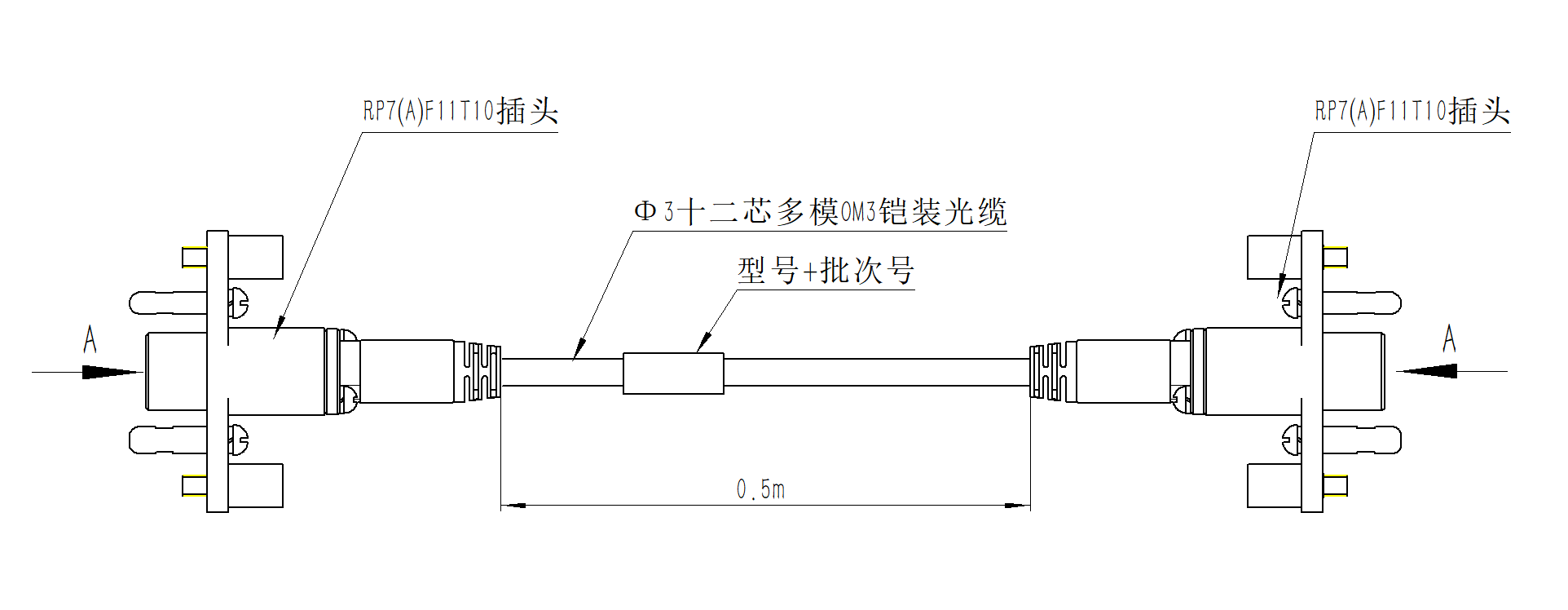

两端为RP7(A)F11T10插头，使用12芯OM3多模Φ3.0铠甲光缆，光缆总长为0.5米。
产品概述
本光缆组件采用RP7(A)F11T10多芯连接器，搭配OM3多模铠甲光缆，专为恶劣环境下的高速光信号传输设计。铝合金镀镍外壳，满足军用及工业级振动、冲击和盐雾测试要求。
产品性能
| 项目 | 参数 |
|---|---|
| 传输模式 | 多模 |
| 工作波长 | 850nm / 1300nm |
| 插入损耗 | RP7连接器 ≤ 0.8dB |
| 振动 | 频率: 10Hz~2000Hz，加速度 147m/s² |
| 冲击 | 半正弦波，加速度 490m/s²，11ms |
| 机械耐久性 | ≥ 500次 |
| 盐雾 | RP7: 96h（铝合金镀镍） |
| 工作温度 | -40°C ~ +80°C |

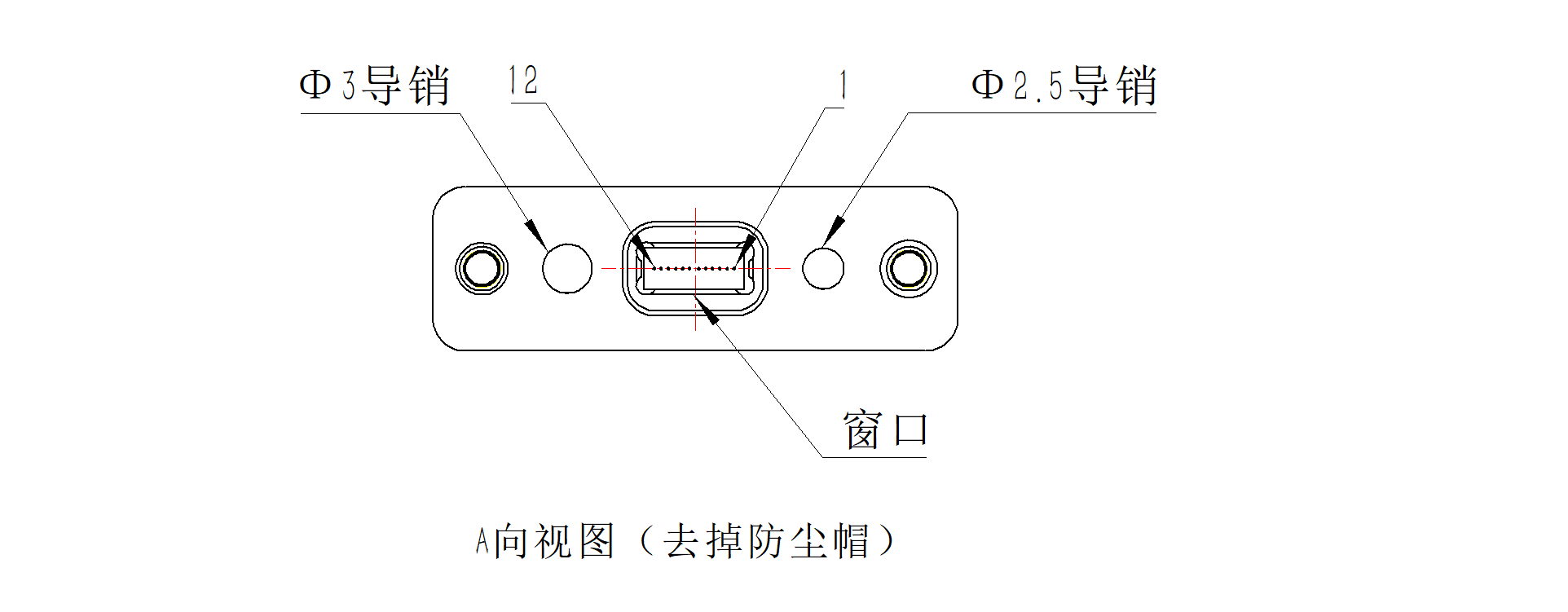

插头节点排列与光路对应关系
两端光路关系一一对应。
