5U Frame Supports 18 Service Slots OEO/EDFA/OLP/DCM/CWDM/DWDM, with A Super High Level of Integration

F-tone 5U frame offers support for up to 18 service slots including OEO, EDFA, OLP, DCM, CWDM, and DWDM functions, it is an ideal solution for advanced networking applications.

5U Frame Supports 18 Service Slots OEO/EDFA/OLP/DCM/CWDM/DWDM, with A Super High Level of Integration

产品详情

产品参数 — F-tone
外壳类型 可机架安装 服务槽位 18 Slots
Power Supply Dual Power AC: 90～260V or DC: -36～-72V 功耗 300W (Typical)
Maximum Wavelength Number CWDM: 96 Wavelength DWDM: 16 Wavelength 波长 CWDM: 1270nm～1610nm DWDM: C Band, 100 GHZ or 50 GHZ
工作湿度范围 5~95% No Condensation 工作温度范围 -10 ℃～60 ℃ (Typical)
储存温度范围 -40℃～85℃ Dimensions mm 220 (H) x 442(W) x 220(D)
外壳类型 可机架安装 服务槽位 18 Slots
Power Supply Dual Power
AC: 90～260V or DC: -36～-72V		 功耗 300W (Typical)
Maximum Wavelength Number CWDM: 96 Wavelength
DWDM: 16 Wavelength		 波长 CWDM: 1270nm～1610nm
DWDM: C Band, 100 GHZ or 50 GHZ
工作湿度范围 5~95% No Condensation 工作温度范围 -10 ℃～60 ℃ (Typical)
储存温度范围 -40℃～85℃ Dimensions mm 220 (H) x 442(W) x 220(D)

Huge Capacity Transmission and Capacity of Modular Upgrade, Multi-rate, Multi-protocol, Full-Service Access and Convergence, Outstanding Architecture Design, and Secure Data Transmission

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

FT-OTN Systems

Save Optical Fiber In Huge Bandwidth Need

40 channels system
Access capacity:80G
40 channels system
Access capacity:160G
40/48/80/96 channels system
Access capacity
400G ➨ 960G➨ 4T➨ 9.6T

WDM Gets Down To The Edge And Provides Limitless Bandwidth Resources In Limited Fiber

F-tone FT-OTN System Includes the Following Two Parts

Customized Solutions, Self-help Selection of Our FT-OTN System Function Modules

OTN Platform

1 Main Chassis 1U/2U/5U
2 Power Supply Module
3 Network Management Unit

OTN Function Module

Transponder (OEO)
Amplifier Modules
Dispersion Compensation
Une Protection

our advantages

Short Lead Time

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High stability

Practical Application Demonstration

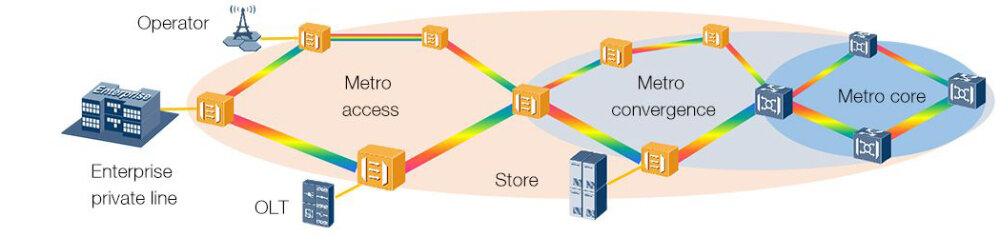

As a kind of transmission technology with huge capacity and long-distance coverage is now widely used in the backbone, convergence and access layer of metropolitan area network.

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
