NVIDIA MCX623106AN-CDAT SmartNIC ConnectX®-6 Dx EN Network Interface Card, 100GbE Dual-Port QSFP56, PCIe4.0 x 16, Tall&Short Bracket

NVIDIA — NVIDIA MCX623106AN-CDAT 100G Ethernet Adapter card kit supports Low latency and high performance with RDMA over Converged Ethernet (RoCE) technology.

产品详情

产品参数 — F-tone
NVIDIA Mellanox PN	MCX623106AN-CDAT	每个端口的数据速率	1/10/25/40/50/100GbE
接口类型	Dual port QSFP56	技术	Ethernet
Hardware Connector	PCIe 4.0 x16	RoCE	Supported
控制器	ConnectX-6 Dx	RoHS	Yes
OS Support	RHEL/CentOS, Windows, FreeBSD VMware, OFED, WinOF-2	Link Rate	16.0 GT/s

NVIDIA Mellanox PN	MCX623106AN-CDAT	每个端口的数据速率	1/10/25/40/50/100GbE
接口类型	Dual port QSFP56	技术	Ethernet
Hardware Connector	PCIe 4.0 x16	RoCE	Supported
控制器	ConnectX-6 Dx	RoHS	Yes
OS Support	RHEL/CentOS, Windows, FreeBSD VMware, OFED, WinOF-2	Link Rate	16.0 GT/s

100GbE Dual-Port QSFP56 MCX623106AN-CDAT ConnectX®-6 Dx EN Network Interface Card

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

: Short Lead Time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Cloud and Web 2.0 Environments

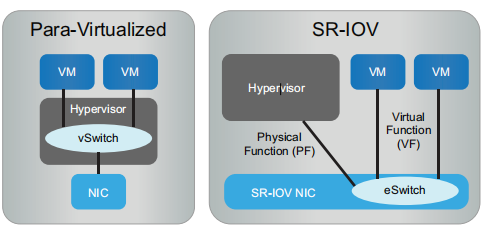

Smart NIC enable data center administrators to benefit from better server utilization and reduced costs, power usage, and cable complexity, allowing for more virtual appliances, virtual machines (VMs) and tenants to co-exist on the same hardware.

Storage Environments

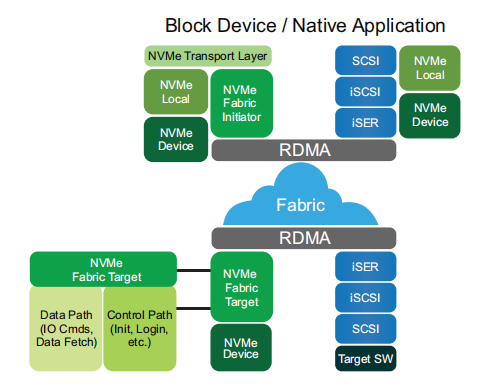

NVMe storage devices are gaining popularity by offering very fast storage access. The evolving NVMe over Fabric (NVMe-oF) protocol leverages the RDMA connectivity for remote access. Smart NIC offers further enhancements by providing NVMe-oF target offloads, enabling very efficient NVMe storage access with no CPU intervention, and thus improving performance and reducing latency.

Telecommunications

Telecommunications service providers are moving towards disaggregation, server virtualization, and orchestration as key tenets to modernize their networks. Likewise, they’re also moving towards Network Function Virtualization (NFV), which enables the rapid deployment of new network services. With this move, proprietary dedicated hardware and software, which tend to be static and difficult to scale, are being replaced with virtual machines running on commercial off-the-shelf (COTS) servers.

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
