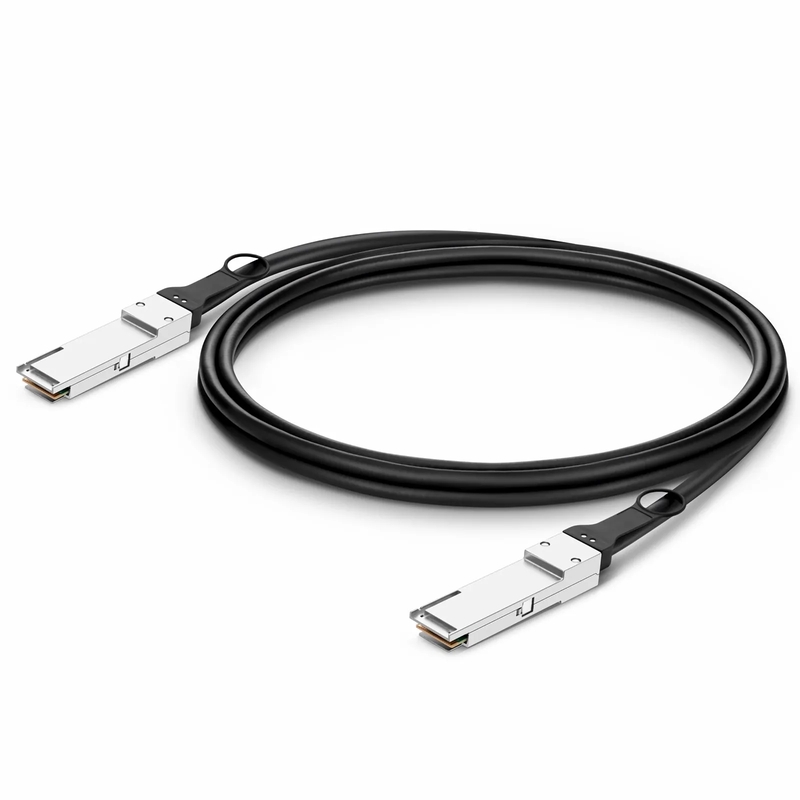

NVIDIA MCP7Y60-H002 Compatible 2m (7ft) 400G OSFP to 2x200G QSFP56 Passive Direct Attach Cable

NVIDIA — NVIDIA MCP7Y60-H002 Compatible 2m 400G OSFP to 2x200G QSFP56 Passive DAC Cable designed to connect an NDR switch with OSFP to a legacy 2 HDR switch/HCA QSFP56.

NVIDIA MCP7Y60-H002 Compatible 2m (7ft) 400G OSFP to 2x200G QSFP56 Passive Direct Attach Cable
NVIDIA MCP7Y60-H002 Compatible 2m (7ft) 400G OSFP to 2x200G QSFP56 Passive Direct Attach Cable
NVIDIA MCP7Y60-H002 Compatible 2m (7ft) 400G OSFP to 2x200G QSFP56 Passive Direct Attach Cable

产品详情

产品参数 — F-tone
NVIDIA Compatible MCP7Y60-H002 制造商名称 F-tone
接口类型 OSFP to 2x QSFP56 传输速率 400Gb/s to 2 x 200Gb/s
线规 AWG 26 线缆长度 2m (6.6ft)
外护套材质 PVC (OFNR) 最小弯曲半径 35mm
工作温度 0~ 70 °C (32 to 158°F) 调制技术 PAM4
协议 SFF-8636 应用 400G InfiniBand NDR
NVIDIA Compatible MCP7Y60-H002 制造商名称 F-tone
接口类型 OSFP to 2x QSFP56 传输速率 400Gb/s to 2 x 200Gb/s
线规 AWG 26 线缆长度 2m (6.6ft)
外护套材质 PVC (OFNR) 最小弯曲半径 35mm
工作温度 0~ 70 °C (32 to 158°F) 调制技术 PAM4
协议 SFF-8636 应用 400G InfiniBand NDR

NVIDIA MCP7Y60-H002 Compatible 400G OSFP to 2x200G QSFP56 Breakout Direct Attach Copper Cable (OSFP to QSFP56 AOC Breakout Cable, Passive 2m)

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

Keep In Stock

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

F-tone Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

Coding (EEPROM Programming)
Testing system

Switch Introduction

NVIDIA Quantum-2 Switches



     Network Card Introduction

e




Network Card List


Notes:

1. 100G can be supported as either 4x25G NRZ or 2x50G.
2. 200G can be supported as either 4x50G or 2x100G.
3. 400G is supported as 4x100G.
4. QSFP112 is backwards compatible with QSFP56 and QSFP28.


Switch to Switch (NDR) – Optics

Switch to Switch (NDR) – Copper

Switch to Switch (NDR) – Active Copper & Direct Attached Copper

Switch to Switch (NDR) – HDR&EDR

Switch to HCA

Switch to HCA (NDR) – Optics

Switch to HCA (NDR) – Copper


Switch-to-DGX H100 GPU Systems
本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
