Juniper — Juniper QDD-2X100G-SR4 Compatible 2x 100GBASE QSFP-DD SR4 Optical Module provides link lengths of up to 100m on OM4 using the MPO-12 connector at 850nm wave length.
产品详情
| 产品参数 — F-tone | |||
| Juniper Networks Compatible | QDD-2X100G-SR4 | 制造商名称 | F-tone |
| 封装 | QSFP-DD | 传输速率 | 200Gbps |
| 波长 | 850nm | 最远传输距离 | 70m on OM3/100m on OM4 |
| 接口类型 | MTP/MPO-24 | 电压 | 3.3V |
| 线缆类型 | 多模(MMF) | 是否支持DDM | Yes |
| 发射激光器类型 | 850nm VCSEL | 光接收器件类型 | PIN |
| 发射光功率 | Each Lane | 接收灵敏度 | < -10.3dBm |
| 工作温度 | 0 to 70°C (32 to 158°F) | 最大功耗 | < 5W |
| 协议 | IEEE 802.3bm 100GBASE- SR4, QSFP-DD MSA | 应用 | 200G Ethernet, Data Center Interconnect |
| Juniper Networks Compatible | QDD-2X100G-SR4 | 制造商名称 | F-tone |
| 封装 | QSFP-DD | 传输速率 | 200Gbps |
| 波长 | 850nm | 最远传输距离 | 70m on OM3/100m on OM4 |
| 接口类型 | MTP/MPO-24 | 电压 | 3.3V |
| 线缆类型 | 多模(MMF) | 是否支持DDM | Yes |
| 发射激光器类型 | 850nm VCSEL | 光接收器件类型 | PIN |
| 发射光功率 | Each Lane | 接收灵敏度 | < -10.3dBm |
| 工作温度 | 0 to 70°C (32 to 158°F) | 最大功耗 | < 5W |
| 协议 | IEEE 802.3bm 100GBASE- SR4, QSFP-DD MSA |
应用 | 200G Ethernet, Data Center Interconnect |
v Compliant with QSFP-DD MSA
v Compliant with IEEE 802.3bm 100GBASE-SR4 standards
v Supports 2×100 Gbps data rate links of up to 70m via OM3 MMF and 100m via OM4 MMF
v 3.3V single power supply
v Power consumption < 5W
v Standard Optical fiber with MPO-12 two-row optical connector
v Compliant with RoHS, UL & TUV

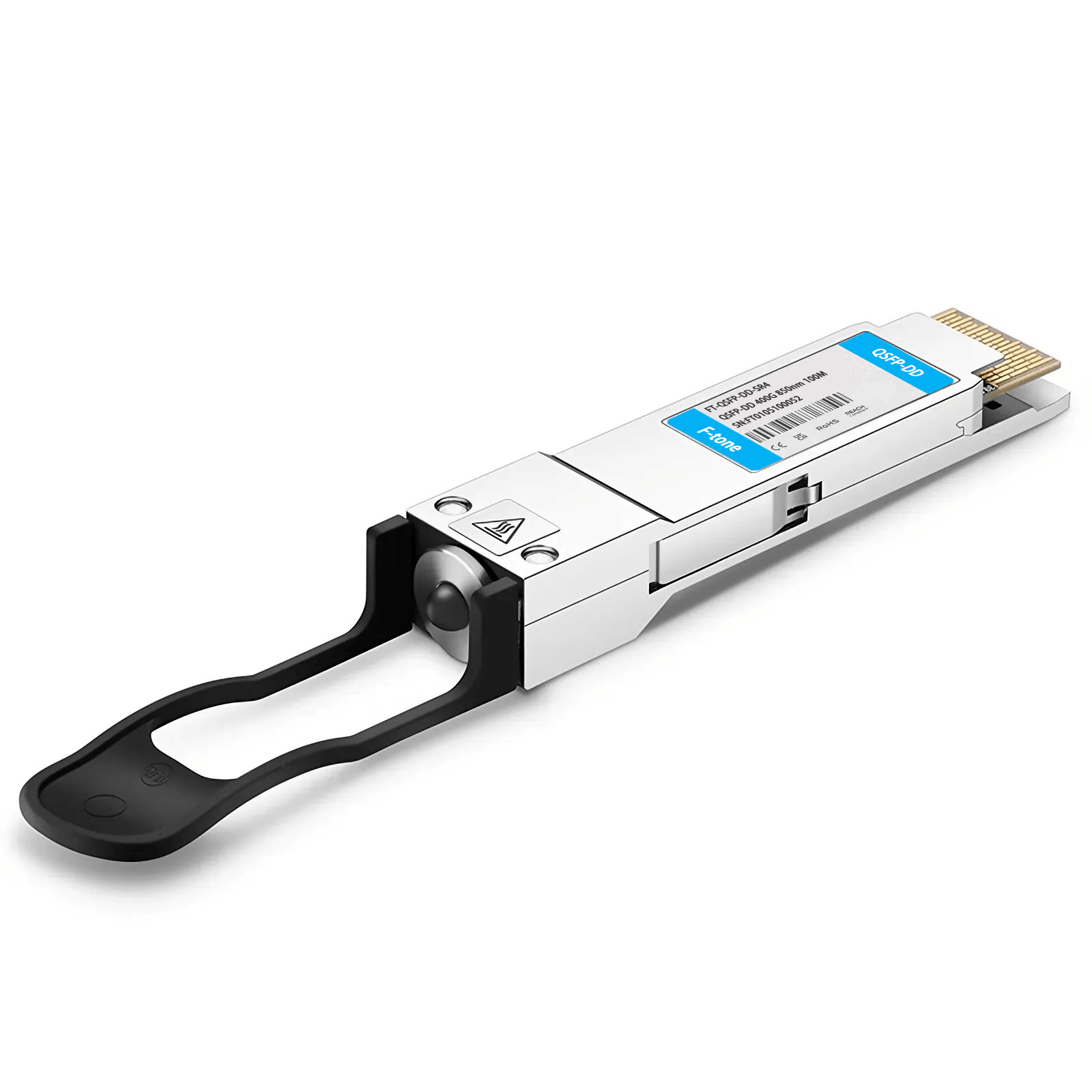

Juniper Networks QDD-2X100G-SR4 Compatible 2X100G QSFP-DD SR4 Optical Transceiver Module (850nm MTP/MPO MMF 70m/100m OM3/OM4 DDM)
2X100G QSFP-DD SR4 transceiver provides 200GBase-SR4 throughput up to 100m over multi-mode fiber (MMF) using a wavelength of 850nm via an MPO-24 connector. It supports Digital optical monitoring (DOM). Its easy-to-install, hot-swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically.
