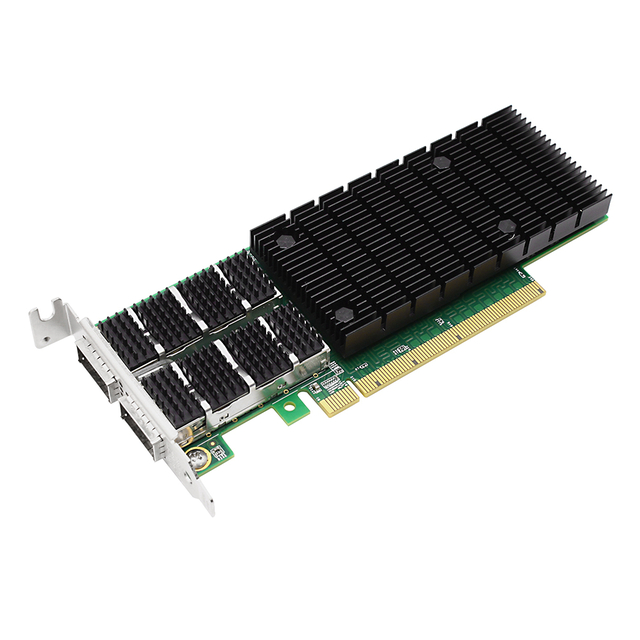

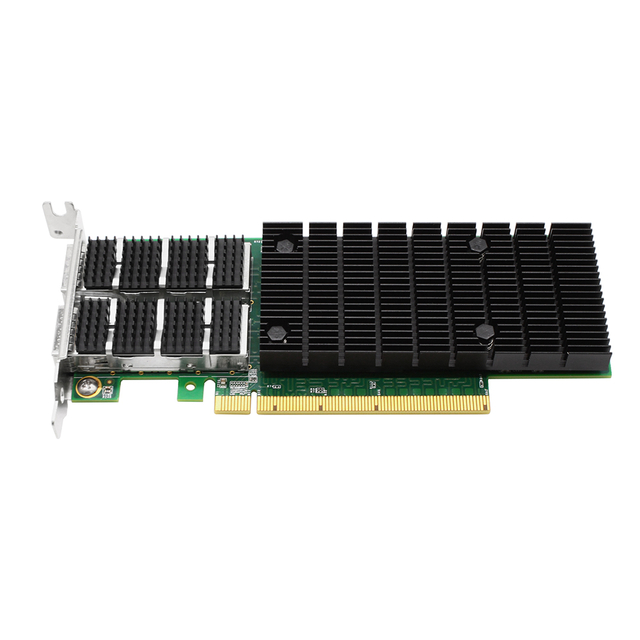

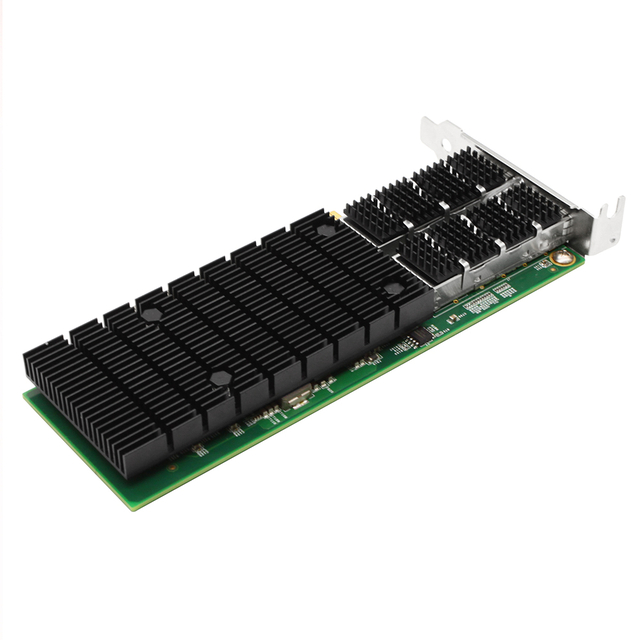

Intel®Ethernet Controller E810-CAM2 100G Dual-Port QSFP28, Ethernet Network Adapter PCIe 4.0 x16

Intel — Intel Ethernet Controller E810-CAM2 based Ethernet Network adapter supports up 100Gbps per port for total bandwidth of 200Gbps.

产品详情

产品参数 — F-tone
控制器	Intel E810-CAM2	垂直段	服务器
每个端口的数据速率	100/50/25/10GE Per Port	端口配置	Dual Port QSFP28
Bus Type/Bus Width	PCIe 4.0 x16	Dimension	168mm x 69mm

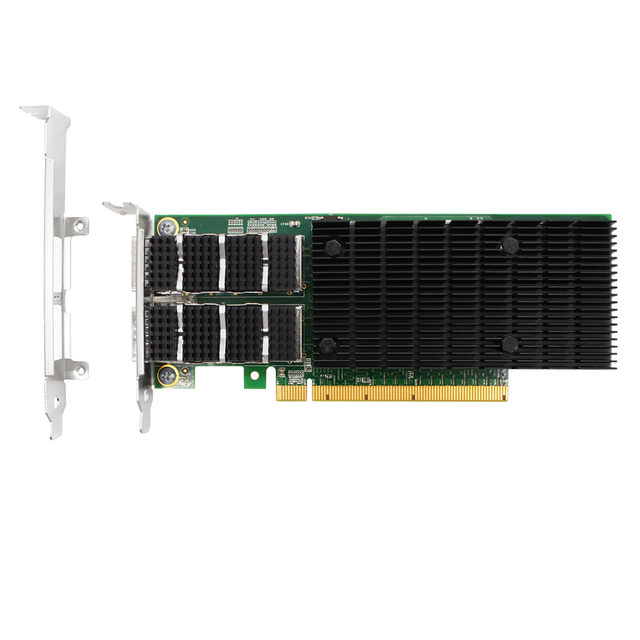

支架高度	薄型和全高	Converged Storage Network	iSCSI, SMB Direct,iSER,SPDK,NVMe
工作温度	0℃~+55℃(32℉~131℉)	传输介质	100GBASE-SR4/LR4,DAC,AOC

控制器	Intel E810-CAM2	垂直段	服务器
每个端口的数据速率	100/50/25/10GE Per Port	端口配置	Dual Port QSFP28
Bus Type/Bus Width	PCIe 4.0 x16	Dimension	168mm x 69mm
支架高度	薄型和全高	Converged Storage Network	iSCSI, SMB Direct,iSER,SPDK,NVMe
工作温度	0℃~+55℃(32℉~131℉)	传输介质	100GBASE-SR4/LR4,DAC,AOC

Key Features

• Supports multiple port speeds with a single architecture:100/50/25/10/1GbE

• Application Device Queues (ADQ)

• Dynamic Device Personalization (DDP)

• Enhanced Data Plane Development Kit (DPDK)

• iWARP and RoCEv2 Remote Direct Memory Access (RDMA)

• Intel® Ethernet Adaptive Virtual Function (Intel® Ethernet AVF)

• Enhanced server virtualization: 256 VFs, 768 VSIs

• Optimized Advanced Transmission Scheduler

• Extensive Network protocol support

• IEEE 1588 Precision Time Protocol (PTP)

• Hardware Root of Trust with Firmware Recovery

Cloud:

• Up to 100Gb/s throughput for diverse workloads in modern data centers

• Support both iWARP and RoCEv2 RDMA, selectable via software per port for low-latency, high-throughput workloads

• Application Device Queues (ADQ) to increase application predictability, reduce application latency and improve application throughput

100 Gigabit Dual Port QSFP28 Intel FTE810-100G-Q2 Ethernet Network Interface Card Fiber Optic Low Latency Ethernet Server Adapter

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

PCIe x8 10G SFP+ 2 Port Fiber Adapter

: High-quality Master Control Chip; IN82599ES-2SFP+ is equipped with Intel 82599ES controller chip,supports VLAN, QOS strategy, flow control and other functions.

: Supports Multiple Operating Systems; Compatible with windows server 2003 / 2008 / 2012 / 2016 ,windows 7/8/10,Linux,Vmware ESX etc

: Dual 10G SFP+ Port; 2x 10G SFP+ optical interface,Support 20Gbps transmission bandwidth.Connect with 10G SFP+ module, 10G SFP+ DAC and 10G SFP+ AOC.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability. F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

: Network Performance Testing; nstalled in motherboard for practical application environment testing to ensure high reliability

: MTBF Testing; MTBF (Mean Time between Failures) testing ensure high stablility

Wide Devices Compatibility

F-tone’s server adpaters have been tested by a great many devices,they are widely compatible with various brand servers, such as Dell, HPE, IBM, Intel servers etc.

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
