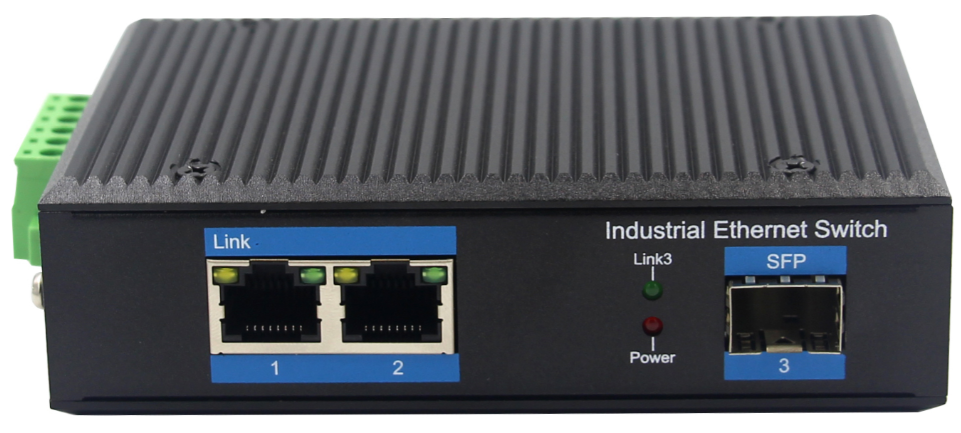

10/100/1000Base-TX (PoE) to 1000Base-FX Industrial Media Converter
FY-YZXD12GP
Distance extending Slim Type with more Practicability and Convenience
The 10/100/1000Base-TX(PoE) to 1000Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the FY-YZXD12GPP-SC2, up to 20km with the FY-YZXD12GP-SC20 .
The FY-YZXD12GP series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40℃ to 85℃ allows the FY-YZXD12GP series to be placed in almost any difficult environment.
The FY-YZXD12GP 10/100/1000Base-TX to 1000Base-FX Industrial Media Converter series efficiently converts data between 10/100/1000Base-TX and 1000Base-FX network. The FY-YZXD12GP series provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The FY-YZXD12GP series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Interface
- The 2-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function, supplying 30W PoE, compatible with 802.3AT/AF
- The 1-port 1000Base-Fx interface SC/FC/ST/SFP
- The Multi-Mode up to 2km
- Single-Mode up to 20km/40km/60km/80km
Industrial conformance
- The 48V to 57V DC, redundant power input
- The -40℃ to 85℃ operating temperature
- The IP40 aluminum housing
- The Supports 6KV DC Ethernet ESD protection
- The Supports 6KV DC EFT protection for power line
- The Free Fall, Shock and Vibration Stability
- DIN-rail design
Specifications:
|
Model No. |
FY-YZXD12GP-SC2 / FY-YZXD12GP-SC20 / FY-YZXD12GP-SFP |
|
10/100/1000Base-TX Port |
2 port RJ-45 auto-MDI / MDI-X |
|
PoE Specification |
PoE Standard: IEEE802.3af/ IEEE802.3at |
|
PoE ports:1-2 port support PoE |
|
|
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) |
|
|
PoE port Auto detect AF/AT devices |
|
|
Output Voltage: DC48V |
|
|
Power Pin Assignment:1/2+;3/6- |
|
|
Power Type: End-span( Mid-span optional) |
|
|
1000Base-FX Port |
FY-YZXD12GP-SC2: 1 SC interface FY-YZXD12GP-SC20: 1 SC Interface FY-YZXD12GP-SFP: 1 SFP Slot |
|
Fiber Port Type |
FY-YZXD12GP-SC2: SC / multi-mode ,up to distance 2km ; FY-YZXD12GP-SC20: SC / single-mode ,up to distance 20km ; FY-YZXD12GP-SFP: Vary on module |
|
Optical Frequency |
FY-YZXD12GP-SC2: 1310nm FY-YZXD12GP-SC20: 1310nm FY-YZXD12GP-SFP: Vary on module |
|
Performance Specification |
Bandwidth: 14Gbps |
|
Installation |
DIN rail |
|
Maximum Frame Size |
9000bytes packet size |
|
Flow Control |
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
|
Enclosure |
IP40 aluminum housing |
|
LED Indicator |
Power: Red Fiber: Link 2(Green) Ethernet: Yellow |
|
Power Input |
48 to 57V DC redundant power |
|
Power Consumption |
< 3 watts |
|
Surge protection |
±4KV |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
|
Network cables |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
|
Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
|
Certification |
CE FCC Rohs compliance |
|
MTBF |
>300,000hours |
|
Dimensions (W x D x H) |
118 x 86 x 33.5 mm |
|
Weight |
Product Weight: 0.36KG Packing Weight: 0.46KG |
|
Working Environment |
Working temperature: -40～85℃ ; Storage temperature: -40～85℃ Relative Humidity: 5%~95 %( no condensation) |
|
Warranty |
1-year replacement with new item; 3-years for main parts. |
Dimensions
Ordering Information
|
FY-YZXD12GP-SC2 |
2-Port 10/100/1000Base-TX (PoE) to 1000Base-FX ,Multi-Mode (1310nm) ,Duplex,SC 2km |
|
|
FY-YZXD12GP-SC20 |
2-Port 10/100/1000Base-TX (PoE) to 1000Base-FX ,Single-Mode (1310nm) ,Dual,SC 20km |
|
|
FY-YZXD12GP-SC20/A |
2-Port 10/100/1000Base-TX (PoE) to 1000Base-FX,Single-Mode (Tx1310nm/Rx1550) ,Single,SC 20km |
|
|
FY-YZXD12GP-SC20/B |
2-Port 10/100/1000Base-TX (PoE) to 1000Base-FX,Single-Mode (Tx1550nm/Rx1310) ,Single,SC 20km |
|
|
FY-YZXD12GP-SFP |
2-Port 10/100/1000Base-TX (PoE) to 1000Base-FX, (SFP Slot) |
|
|
Power supply (optional) |
FY-Y54825-DC |
DC 48V/2.5A,120W suitable for PoE 1-8 port |
|
FY-Y55223-DC |
DC 52V/2.3A,120W suitable for PoE 1-8 port |
|
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
