FT-74 16CH DWDM MUX/DEMUX Mini Module

16CH

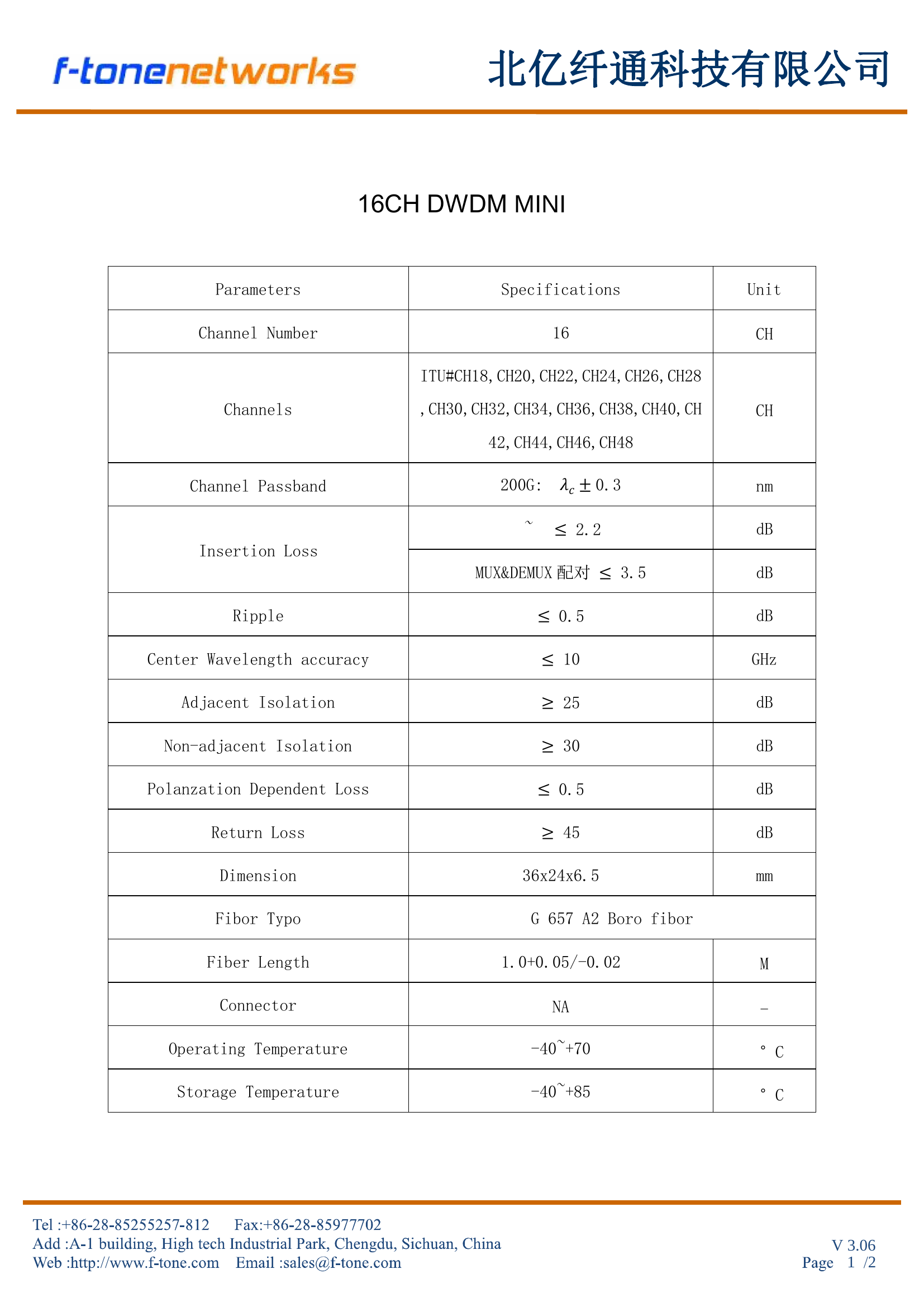

Parameters Specifications Unit

Channel Number 16 CH

ITU#CH18,CH20,CH22,CH24,CH26,CH28

Channels ,CH30,CH32,CH34,CH36,CH38,CH40,CH CH

42,CH44,CH46,CH48

Channel Passband 200G: 0.3 nm

±

~ 2.2 dB

Insertion Loss

MUX&DEMUX≤配对 3.5 dB

Ripple 0.5 ≤ dB

Center Wavelength accuracy ≤ 10 GHz

Adjacent Isolation ≤ 25 dB

Non-adjacent Isolation ≥ 30 dB

Polanzation Dependent Loss ≥0.5 dB

Return Loss ≤ 45 dB

Dimension 36x≥24×6.5 mm

Fibor Typo G 657 A2 Boro fibor

Fiber Length 1.0+0.05/-0.02 M

Connector NA –

Operating Temperature -40~+70 C

∘

Storage Temperature -40~+85 C

∘

V 3.06

1 /2

DWDM MINI

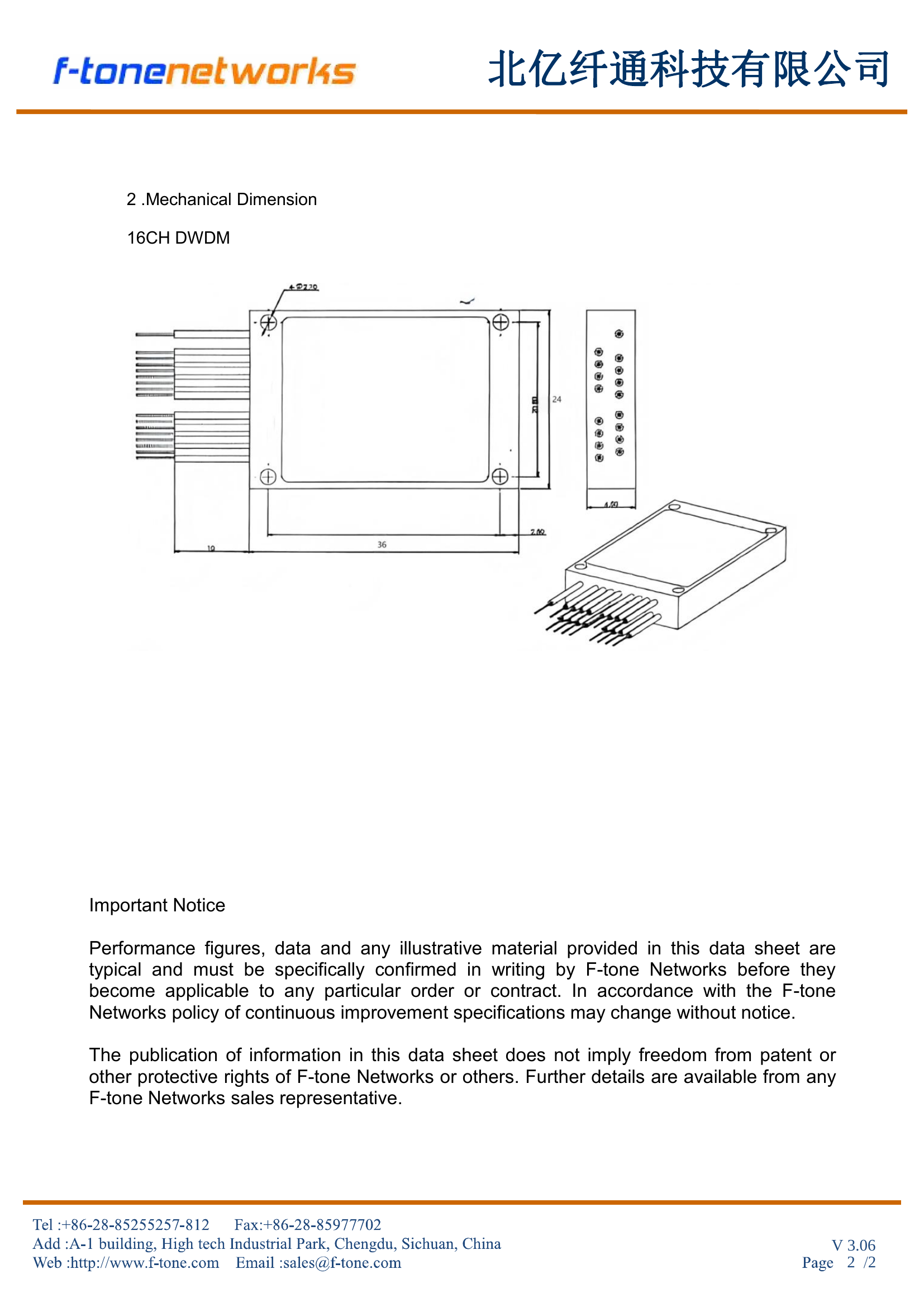

2.Mechanical

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are

typical and must be specifically confirmed in writing by F-tone Networks before they

become applicable to any particular order or contract. In accordance with the F-tone

Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or

other protective rights of F-tone Networks or others. Further details are available from any

F-tone Networks sales representative.

V 3.06

2 /2

Dimension

16CH DWDM
