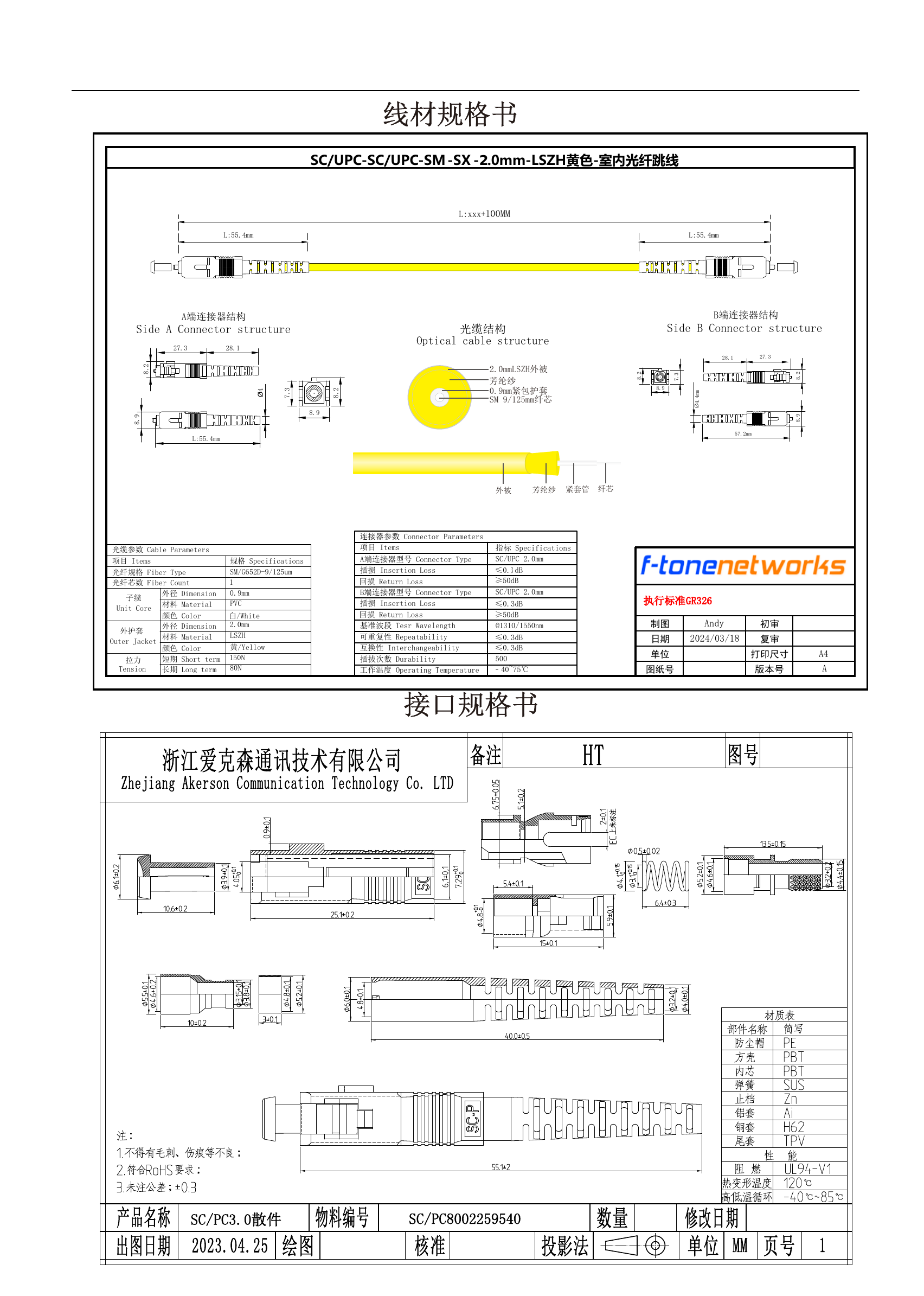

SC/UPC-SC/UPC-SM-SX-2.0mm-LSZH 室内光纤跳线 FT-157系列
产品概述
FT-157系列 SC/UPC-SC/UPC-SM-SX-2.0mm-LSZH 室内光纤跳线，采用 G652D 单模光纤，2.0mm LSZH（低烟无卤）外被，适用于室内布线环境。A端和B端均采用 SC/UPC 连接器，结构紧凑，插损低，回损高，适用于数据通信、接入网和室内光纤布线系统。
连接器参数
| 项目 (Items) | 指标 (Specifications) |
|---|---|
| A端连接器型号 (Connector Type) | SC/UPC 2.0mm |
| 插入损耗 (Insertion Loss) | ≤0.3dB |
| 回损 (Return Loss) | ≥50dB |
| B端连接器型号 (Connector Type) | SC/UPC 2.0mm |
| 回损 (Return Loss) | ≥50dB |
| 基准波段 (Test Wavelength) | @1310/1550nm |
| 可重复性 (Repeatability) | ≤0.3dB |
| 互换性 (Interchangeability) | ≤0.3dB |
| 工作温度 (Operating Temperature) | -40~+75°C |
光缆参数
| 项目 (Items) | 规格 (Specifications) |
|---|---|
| 光纤规格 (Fiber Type) | SM/G652D-9/125μm |
| 光纤芯数 (Fiber Count) | 1 |
| 子缆外径 (Sub Cable Diameter) | 0.9mm |
| 外被材料 (Outer Jacket Material) | LSZH |
| 颜色 (Color) | 黄色 (Yellow) |
| 外径 (Dimension) | 2.0mm |
| 短期拉力 (Short term Tension) | 150N |
| 长期拉力 (Long term Tension) | 80N |
执行标准
GR-326
Region: Tianfu New Area, Sichuan, China
Service Area: Global
Tel: 028-85255257 | Fax: 028-85977702 | Mobile: 19081343401
Site: https://www.f-tone.com
HR: hr@f-tone.com | Sales: sales@f-tone.com | Support: support@f-tone.com
本产品为【光纤跳线】产品线，详细信息，请联系我们的销售人员，谢谢！
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
