产品概述 Product Overview
BYCS-131X-10Dxx是一款SFP+封装的10Gbps 1310nm双工光收发模块，支持10GBASE-LR标准，传输距离可达10km。该模块采用1310nm DFB激光发射器和PIN光电探测器，符合IEEE 802.3ae 10GBASE-LR标准，电气接口符合SFF-8431规范，支持SFF-8472数字诊断监控（DDM）功能。全金属外壳设计提供优异的EMI屏蔽性能，低功耗设计，支持商业温度（0~70°C）和工业温度（-40~85°C）两个等级。
The BYCS-131X-10Dxx is a SFP+ package 10Gbps 1310nm duplex optical transceiver module supporting 10GBASE-LR standard with transmission distance up to 10km. It uses 1310nm DFB laser transmitter and PIN photo-detector, compliant with IEEE 802.3ae 10GBASE-LR, electrical interface compliant to SFF-8431, and supports SFF-8472 Digital Diagnostic Monitoring (DDM). All-metal housing for superior EMI performance, low power consumption, available in commercial (0~70°C) and industrial (-40~85°C) temperature grades.
产品特点 Key Features
- 10Gb/s串行光接口，符合802.3ae 10GBASE-LR标准
- 电气接口符合SFF-8431 SFP+规范
- 1310nm DFB激光发射器，PIN光电探测器
- 2线串行接口，符合SFF-8472数字诊断监控
- 全金属外壳，优异EMI屏蔽性能
- 低功耗设计（≤1000mW）
- 支持客户系统加密信息存储
- 符合RoHS标准
- 商业温度：0~70°C / 工业温度：-40~85°C
- Class 1激光安全等级，符合IEC 60825
- ESD防护：2kV（HBM）
应用范围 Applications
- 高速存储区域网络 High-speed Storage Area Networks
- 计算机集群交叉连接 Computer Cluster Cross-connect
- 定制高速数据通道 Custom High-speed Data Pipes
- 10GbE以太网 10 Gigabit Ethernet
产品图片 Product Photo

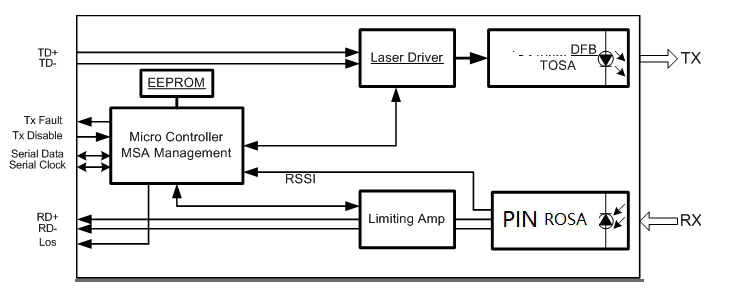

功能框图 Block Diagram

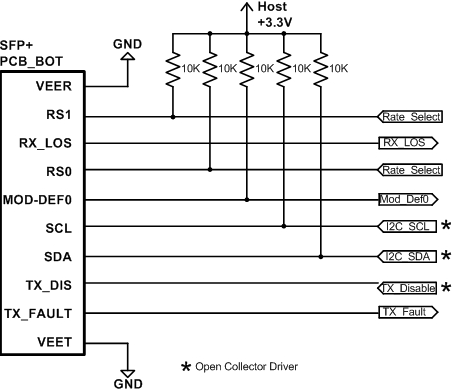

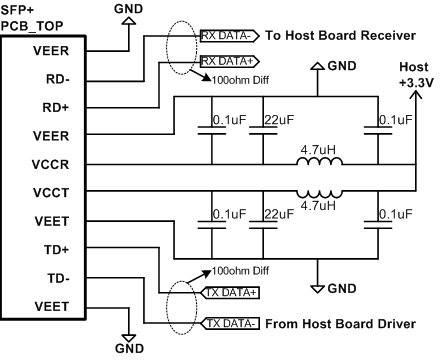

应用原理图 Application Schematics
绝对最大额定值 Absolute Maximum Ratings
| 参数 Parameter | 符号 Symbol | 最小值 Min | 最大值 Max | 单位 Unit |
|---|---|---|---|---|
| 电源电压 Power Supply Voltage | Vcc | 0 | 3.6 | V |
| 存储温度 Storage Temperature | Tc | -40 | 85 | °C |
| 工作温度(商业) Operating Case Temp. | Tc | 0 | 70 | °C |
| 工作温度(工业) Operating Case Temp. | Ti | -40 | 85 | °C |
| 相对湿度 Relative Humidity | RH | 5 | 95 | % |
| RX输入平均功率 RX Input Avg. Power | Pmax | — | 0 | dBm |
注意：超过任何绝对最大额定值可能导致器件立即损坏。
Note: Exceeding any of these values may immediately damage the device.
推荐工作条件 Recommended Operating Conditions
| 参数 Parameter | 符号 | 最小值 Min | 典型值 Typ | 最大值 Max | 单位 Unit |
|---|---|---|---|---|---|
| 电源电压 Power Supply Voltage | Vcc | 3.135 | 3.3 | 3.465 | V |
| 电源电流 Power Supply Current | Icc | — | — | 350 | mA |
| 工作温度(商业) | TC | 0 | 25 | 70 | °C |
| 工作温度(工业) | TC | -40 | 25 | 85 | °C |
光学特性 Optical Characteristics
| 参数 Parameters | 单位 Unit | 数值 Values |
|---|---|---|
| 传输距离 Operating Reach | m | 10K |
| Transmitter 发射器 | ||
| 中心波长 Center Wavelength | nm | 1260~1355 |
| 边模抑制比 SMSR (min) | dB | 30 |
| 发射功率(最大平均) Launch Power Max (Avg.) | dBm | 0.5 |
| 发射功率(最小平均) Launch Power Min (Avg.) | dBm | -8.2 |
| OMA (min) | dBm | -5.2 |
| OMA-TDP (min) | dBm | -6.2 |
| 发射器与色散代价 TDP (max) | dB | 3.2 |
| OFF发射器平均功率(.max) | dBm | -30 |
| 消光比 Extinction Ratio (min) | dB | 3.5 |
| RIN12 OMA (max) | dB/Hz | -128 |
| 光回波损耗容限 ORLT (min) | dB | 12 |
| Receiver 接收器 | ||
| 中心波长 Center Wavelength | nm | 1260~1620 |
| 接收过载(最大平均功率) Receive Overload | dBm | 0.5 |
| 接收灵敏度(最小平均功率) Sensitivity | dBm | -14.4 |
| 接收灵敏度(OMA max) | dBm | -12.6 |
| 接收器反射率 Receiver Reflectance (max) | dB | -12 |
| 受压接收灵敏度 Stressed Sensitivity (OMA max) | dBm | -10.3 |
| 垂直眼闭合代价 VECP (min) | dB | 2.2 |
| LOS Assert (min) | dBm | -30 |
| LOS Deassert (max) | dBm | -12 |
| LOS迟滞 LOS Hysteresis (min) | dB | 0.5 |
| 受压眼抖动 Stressed Eye Jitter (min) | UIp-p | 0.3 |
| 接收电学3dB上限截止频率 | GHz | 12.3 |
| 接收器功率(损坏最大值) Rx Power (Damage Max) | dBm | 1.5 |
数字诊断功能 Digital Diagnostic Functions
| 参数 Parameter | 符号 | 最小值 Min | 最大值 Max | 单位 Unit |
|---|---|---|---|---|
| 温度监测绝对误差 | DMI_Temp | -3 | 3 | °C |
| 激光功率监测绝对误差 | DMI_TX | -3 | 3 | dB |
| 接收功率监测绝对误差 | DMI_RX | -3 | 3 | dB |
| 电源电压监测绝对误差 | DMI_VCC | -0.08 | 0.08 | V |
| 偏置电流监测 | DMI_Ibias | -10% | 10% | mA |
符合SFF8472 Rev10.2，内部校准模式。
Compliant to SFF8472 Rev10.2 with internal calibration mode.
电气特性 Electrical Characteristics
| 参数 Parameter | 符号 | 最小值 Min | 典型值 Typ | 最大值 Max | 单位 Unit |
|---|---|---|---|---|---|
| 数据速率 Data Rate | / | — | 10.3125 | — | Gbps |
| 功耗 Power Consumption | / | — | 800 | 1000 | mW |
| Transmitter 发射器 | |||||
| 单端输出电压容差 | / | -0.3 | — | 4 | V |
| Tx输入差分电压 Tx Input Diff Voltage | VI | 180 | — | 800 | mV |
| Tx Fault | VoL | -0.3 | — | 0.4 | V |
| 数据相关输入抖动 DDJ | DDJ | — | — | 0.1 | UI |
| 数据输入总抖动 Total Jitter | TJ | — | — | 0.28 | UI |
| Receiver 接收器 | |||||
| Rx输出差分电压 Rx Output Diff Voltage | Vo | 300 | — | 850 | mV |
| Rx输出上升/下降时间 | Tr/Tf | 30 | — | — | ps |
| 总抖动 Total Jitter | TJ | — | — | 0.7 | UI |
| 确定性抖动 Deterministic Jitter | DJ | — | — | 0.42 | UI |
控制与状态I/O时序 Control and Status I/O Timing
| 参数 Parameter | 符号 | 最大值 Max | 单位 Unit |
|---|---|---|---|
| TX Disable Assert Time | t_off | 10 | μs |
| TX Disable Negate Time | t_on | 1 | ms |
| 初始化时间(含TX_Fault复位) | t_init | 300 | ms |
| TX Fault Assert Time | t_fault | 100 | μs |
| LOS Assert Time | t_loss_on | 100 | μs |
| LOS Deassert Time | t_loss_off | 100 | μs |
| Serial ID Clock Rate | t_serial_clock | 100 | kHz |

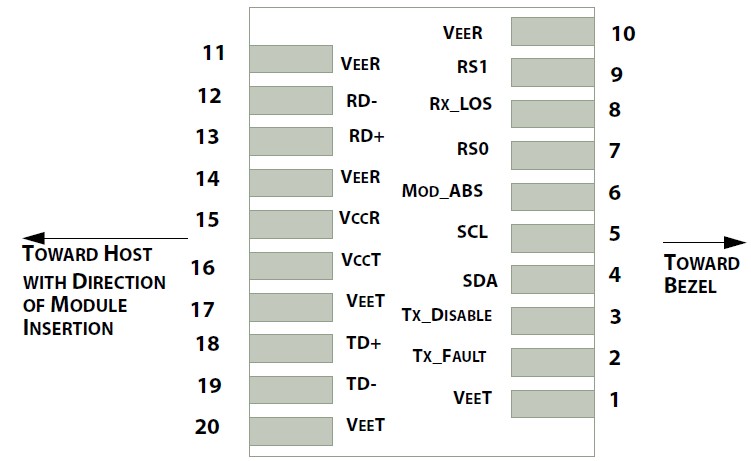

管脚定义 Pin Assignment
| PIN | Logic | Symbol | 描述 Description |
|---|---|---|---|
| 1 | — | VeeT | Module Transmitter Ground |
| 2 | LVTTL-O | TX_Fault | Module Transmitter Fault |
| 3 | LVTTL-I | TX_Dis | Transmitter Disable |
| 4 | LVTTL-I/O | SDA | 2-Wire Serial Interface Data Line |
| 5 | LVTTL-I | SCL | 2-Wire Serial Interface Clock |
| 6 | — | MOD_DEF0 | Module Definition, Grounded |
| 7 | LVTTL-I | RS0 | Receiver Rate Select |
| 8 | LVTTL-O | RX_LOS | Receiver Loss of Signal Indication |
| 9 | LVTTL-I | RS1 | Transmitter Rate Select |
| 10 | — | VeeR | Module Receiver Ground |
| 11 | — | VeeR | Module Receiver Ground |
| 12 | CML-O | RD- | Receiver Inverted Data Output |
| 13 | CML-O | RD+ | Receiver Data Output |
| 14 | — | VeeR | Module Receiver Ground |
| 15 | — | VccR | Module Receiver 3.3V Supply |
| 16 | — | VccT | Module Transmitter 3.3V Supply |
| 17 | — | VeeT | Module Transmitter Ground |
| 18 | CML-I | TD+ | Transmitter Non-Inverted Data Input |
| 19 | CML-I | TD- | Transmitter Inverted Data Input |
| 20 | — | VeeT | Module Transmitter Ground |

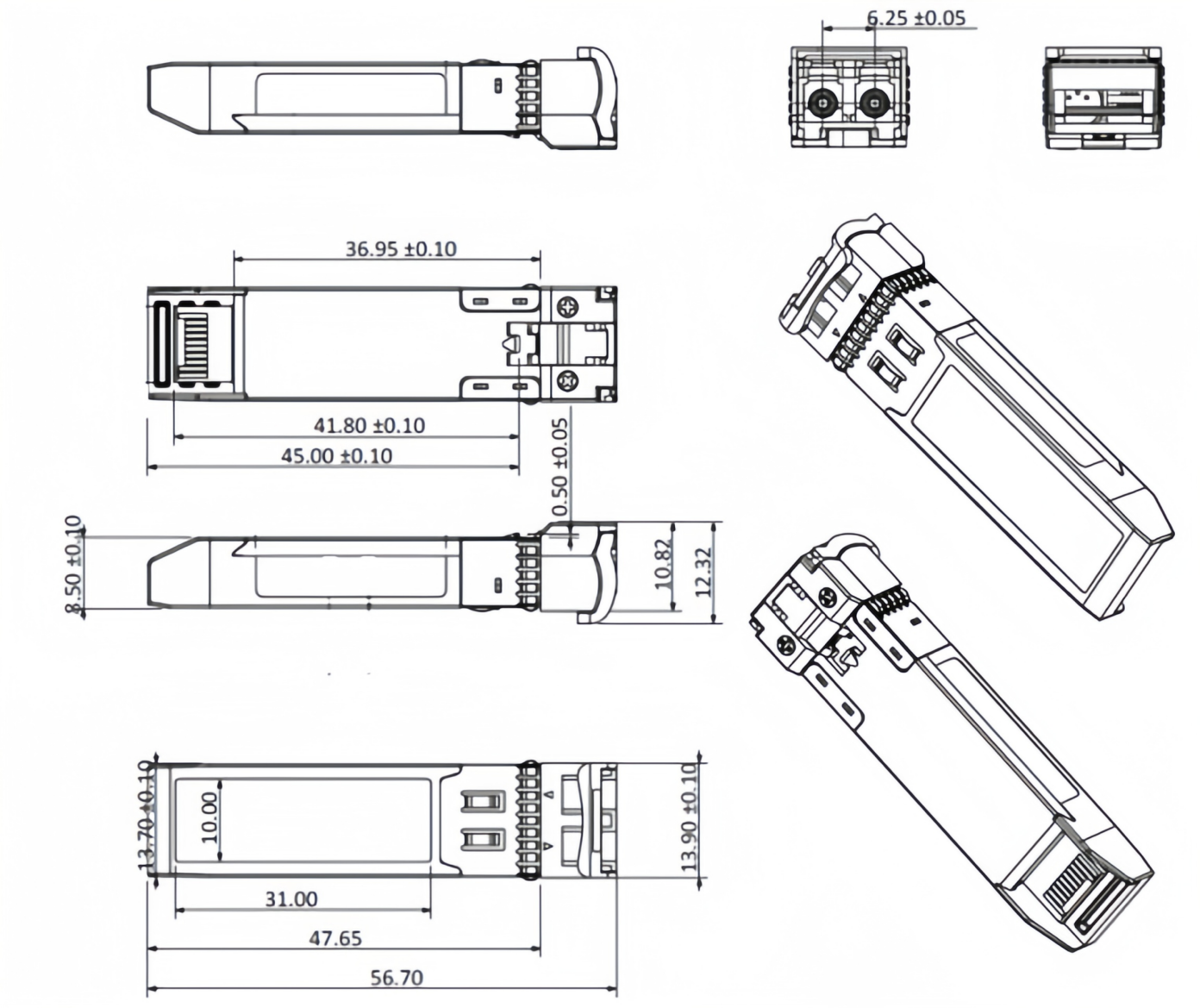

外形尺寸 Mechanical Specifications
符合SFF-8432 rev. 5.0改进型可插拔封装规范。
Comply to SFF-8432 rev. 5.0, the improved Pluggable form factor specification.
ESD防护 ESD Protection
所有电气输入引脚ESD阈值2kV，按MIL-STD-883 Method 3015.4 / JESD22-A114-A (HBM)测试。
ESD threshold 2kV for all electrical input pins, tested per MIL-STD-883, Method 3015.4 / JESD22-A114-A (HBM).
激光安全 Laser Safety
符合IEC 60825-1:1993+A1:1997+A2:2001 Class 1激光产品标准。
This is a Class 1 Laser Product according to IEC 60825-1:1993:+A1:1997+A2:2001. Complies with 21 CFR 1040.10 and 1040.11.
订货信息 Ordering Information
| 型号 Model | 规格描述 Specification Description |
|---|---|
| BYCS-131X-10D | SFP+ DUAL, 1310nm, 10.3125G, 10km, With DDM, 0~70°C (商业温度) |
| BYCS-131X-10DI | SFP+ DUAL, 1310nm, 10.3125G, 10km, With DDM, -40~85°C (工业温度) |
本产品为【10G SFP+光模块】产品线，详细信息，请联系我们的销售人员，谢谢！
This product belongs to the 10G SFP+ Optical Transceiver product line. For more details, please contact our sales representatives. Thank you!
