FT-SFP-021PB SFP+ CAGE 2X1 ASSEMBLY 产品概述
FT-SFP-021PB 是北亿纤通科技有限公司（F-tone Networks）推出的 SFP+ 笼座组件（2X1 Assembly），支持 2 位 SFP+ 模块插槽，可选配导光管（Light Pipe Optional）。该产品严格遵循 SFP MSA 标准设计，适用于高速数据通信设备中的光电模块接口，广泛应用于交换机、路由器、服务器及网络存储设备等场景。

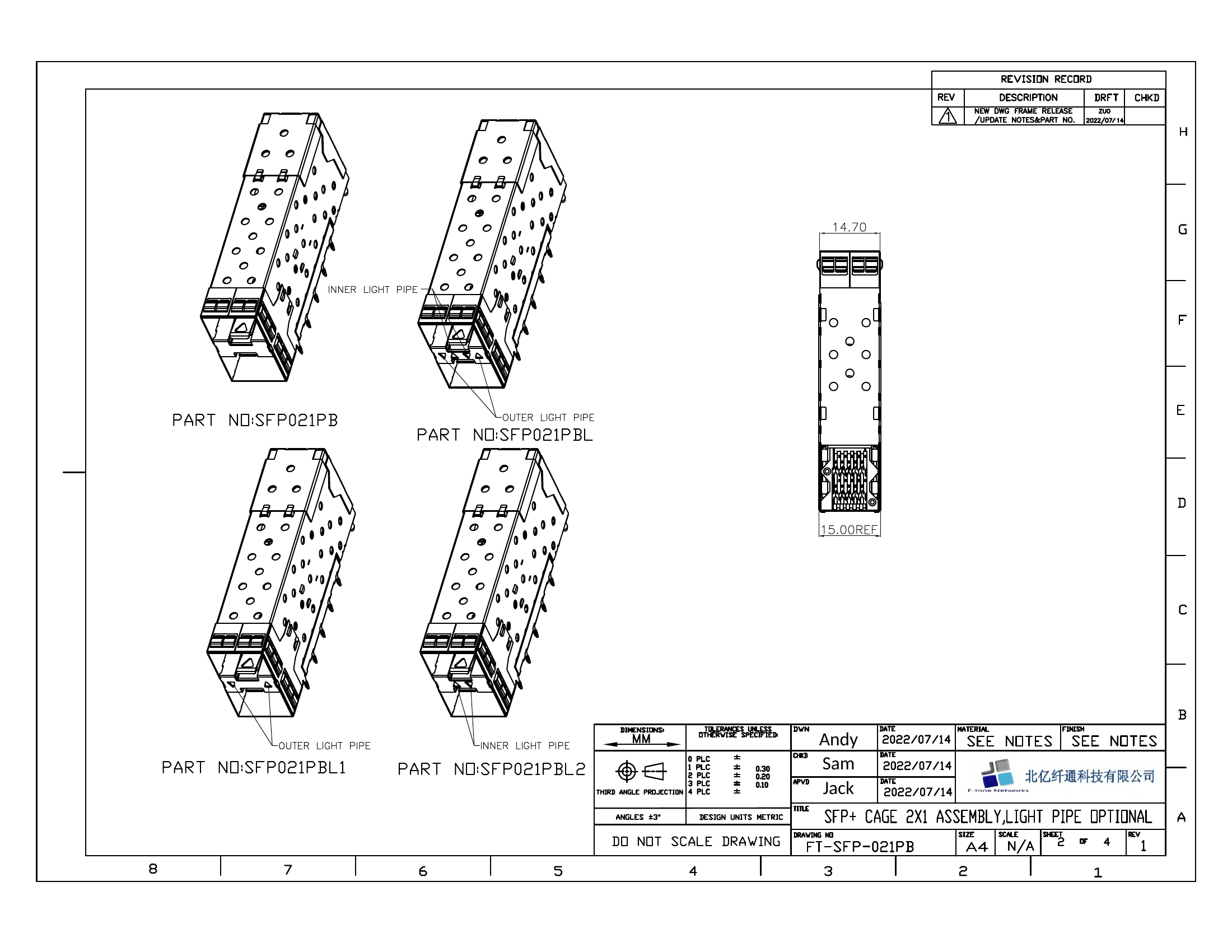

产品型号涵盖 SFP021PB、SFP021PBL、SFP021PBL1、SFP021PBL2 等多个版本，REV 1 版本，满足不同客户的定制化需求。产品已通过 ROHS 认证，符合环保要求。
型号与部件编号
FT-SFP-021PB 系列提供多种型号配置，以满足不同应用场景的需求：
- SFP021PB — 基础型 SFP+ CAGE 2X1 组件
- SFP021PBL — 带导光管版本
- SFP021PBL1 — 导光管配置变体 1
- SFP021PBL2 — 导光管配置变体 2

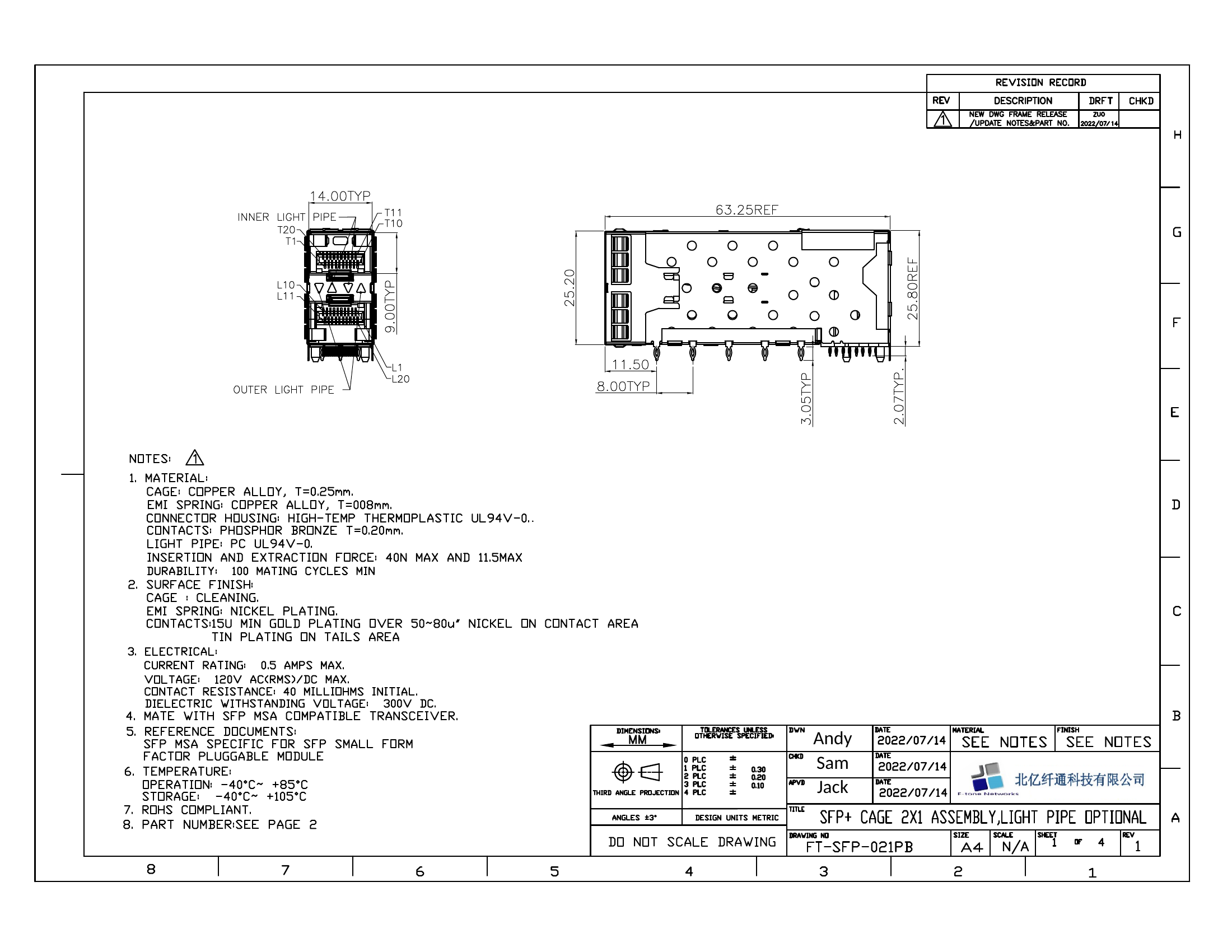

材料规格
| 部件 | 材料 | 规格/备注 |
|---|---|---|
| 屏蔽笼（CAGE） | 铜合金 | 厚度 0.25mm |
| EMI 弹片 | 铜合金 | 厚度 0.008mm，镀镍 |
| 连接器座体 | 高温热塑性塑料 | UL94V-0 阻燃等级 |
| 接触端子 | 磷青铜 | 厚度 0.20mm，接触区域镀金 ≥150μ”，尾部镀锡 |
| 导光柱 | PC 材质 | UL94V-0 阻燃等级 |
电气特性
| 参数 | 规格 |
|---|---|
| 最大额定电流 | 0.5A |
| 最大额定电压 | 120V AC RMS |
| 初始接触电阻 | ≤40mΩ |
| 耐压 | 300V DC |
机械特性
| 参数 | 规格 |
|---|---|
| 插拔力 | 11.5N ~ 40N |
| 耐用性 | ≥100 次插拔循环 |
| 工作温度 | -40℃ ~ +85℃ |
| 存储温度 | -40℃ ~ +105℃ |

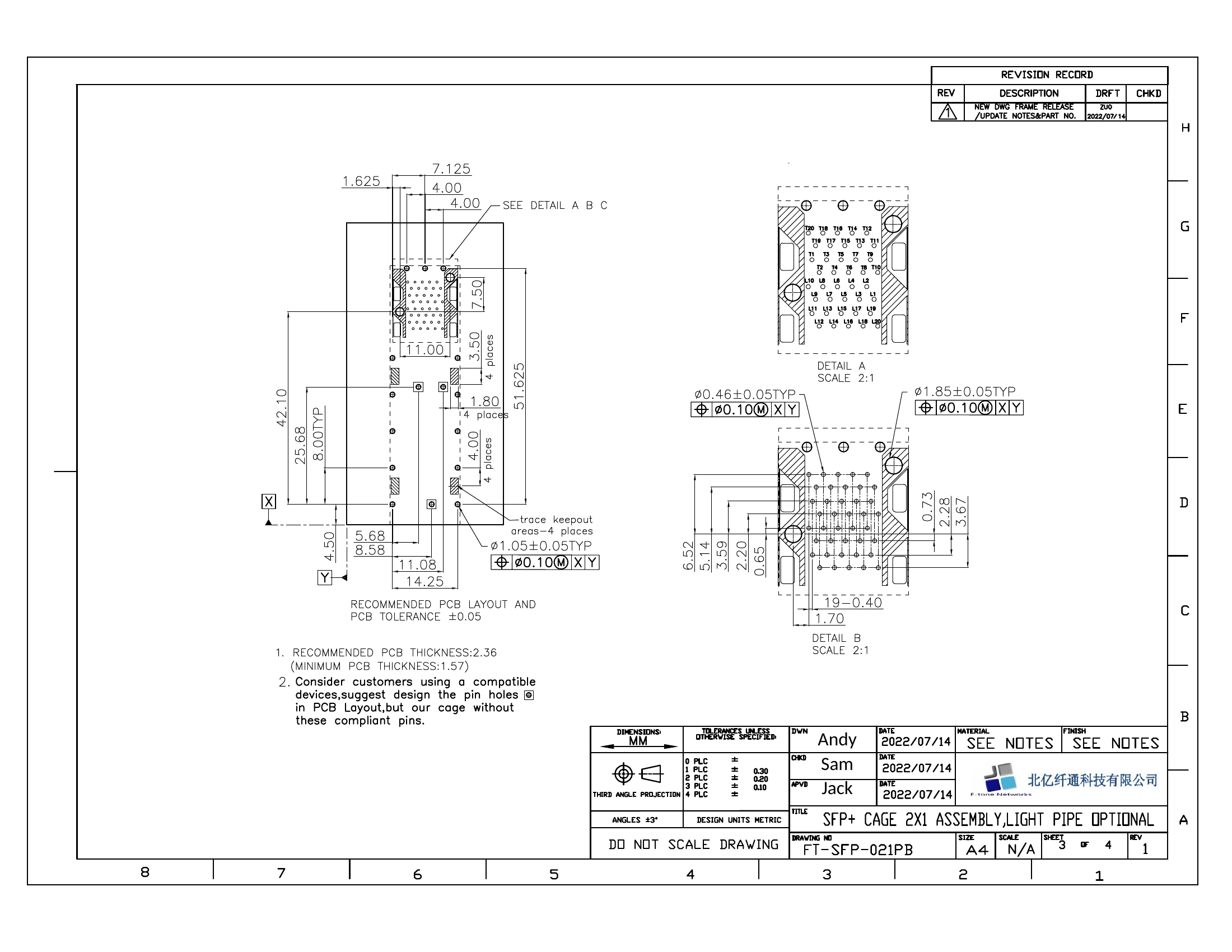

PCB 布局参数
| 参数 | 规格 |
|---|---|
| 推荐 PCB 厚度 | 2.36mm（最小 1.57mm） |
| PCB 布局公差 | ±0.05mm |

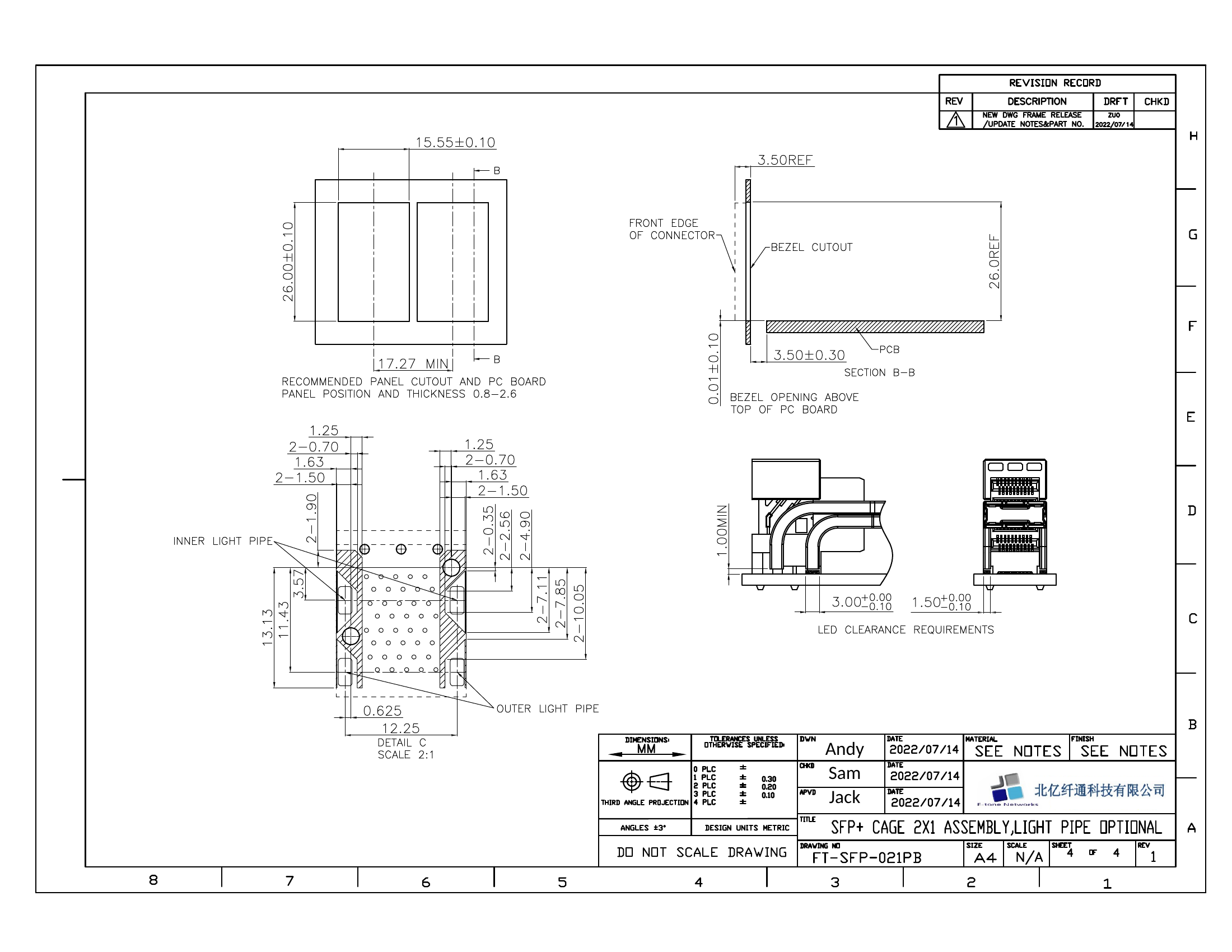

| 面板开孔尺寸 | 26.00±0.10mm × 15.55±0.10mm |
产品标准与认证
- 符合 SFP MSA（多源协议）标准
- 符合 ROHS 环保指令
- UL94V-0 阻燃等级
—
